Part number
SPED420200
3.8mm-travel Push-push Type SPED/4 Series
Automotive
MEMBERS ONLY
Basic information
- Changeover timing
- Non shorting
- Total travel
- 3.8mm
- Operating force
- 4.17±0.74N
- Mounting method
- PC board
- Poles
- 1
- Positions
- 2
- Operation
- Alternate
- Terminal type
- For PC board

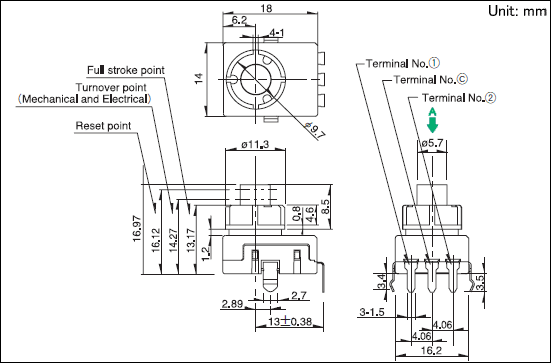

- Dimensions (W×D×H)
- 18.0×14.0×7.27mm
Specifications
- Operating temperature range
- -40℃ to +95℃
- Rating (max.)/(min.) (Resistive load)
- 2A 14.5V DC/ -
- Electrical performance
- Contact resistance (Initial performance/After lifetime)
- 100mΩ max./100mΩ max.
- Insulation resistance
- 3MΩ min. 500V DC
- Voltage proof
- 100V AC for 1 minute
- Mechanical performance
- Actuator strength
- Operating direction
- 90N
- Durability
- Operating life with load (at max. rated load)
- 30,000 cycles 100mΩ max.
- Environmental performance
- Cold
- -40℃ 96h
- Dry heat
- 105℃ 192h
- Damp heat
- 40℃, 90 to 95%RH 96h
- Minimum order unit(pcs.)
- Japan
- 280
- Export
- 1,120
Mounting Hole Dimensions
Viewed from direction A in the dimensions.
Circuit Diagram
Factory setting for contact points can be either 1 or 2.
Packing Specifications
Tray
- Number of packages (pcs.)
-
- 1 case / Japan
- 280
- 1 case / export packing
- 1,120
- Export package measurements (mm)
- 555×375×223
Soldering Conditions
Reference for Dip Soldering
- Items
-
- Preheating temperature
- -
- Preheating time
- -
- Dip soldering
-
- Soldering temperature
- 260±5℃
- Duration of immersion
- 10±1s
Reference for Hand Soldering
- Soldering temperature
- 350±10℃
- Soldering time
- 3±0.5s
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
- This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
