Part number
HSCDTD015A
Geomagnetic Type HSCD Series
MEMBERS ONLY
Basic information

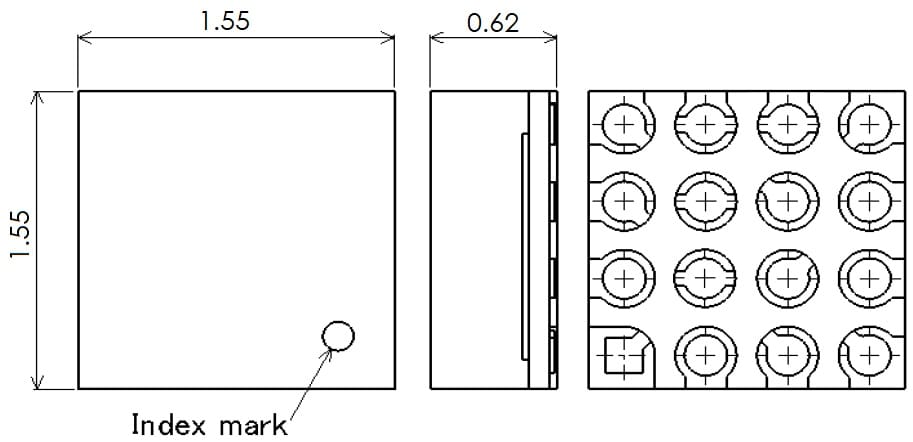

- Size
-
1.55×1.55×0.62
16pin LGA - Measurement range
- ±2.4mT
- Current consumption
-
369μA typ. （ODR=100 Hz）
19μA typ. （stanby） - Operating voltage
- AVDD: Drive voltage
- +1.6 to +2.0V
- DVDD_io: Drive voltage
- +1.14 to AVDD
Specifications
- Operating temperature range
- -40℃ to +85℃
- Output resolution
- 0.075μT/LSB
- Interface
- I²C
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
- Azimuth accuracy (margin of error) may be influenced by environmental conditions and other devices.
