Part number

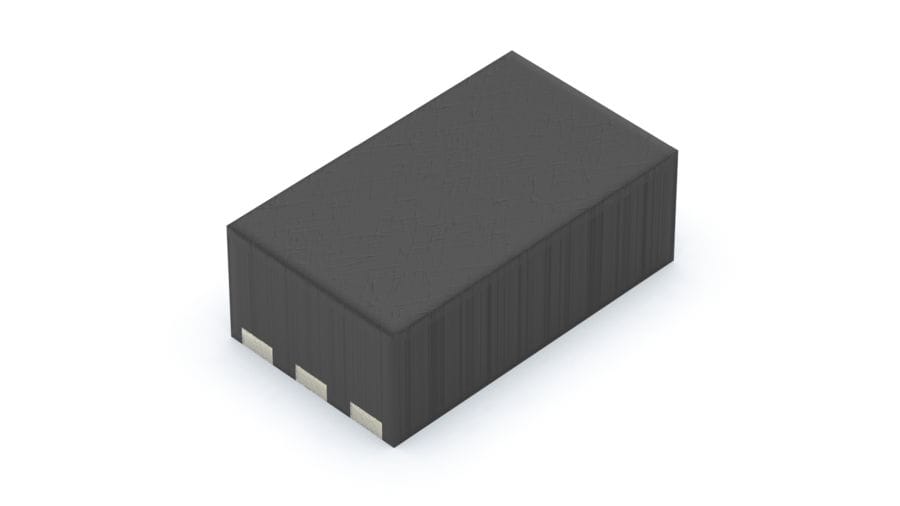

HGARAN008A
Analog Linear Output Type HGAR Series
MEMBERS ONLY
Basic information
- Package specifications
- DFN type
- Type
- Angle (Sin/Cos, Surface mount)
- Size
- 1.8×1.05×0.65mm
- Function
- Sin/Cos output
- Operating magnetic field
- 20 to 60mT
- Drive voltage
- 5.5V max.
- Bridge resistance
- 5kΩ
Specifications
- Operating temperature range
- -40℃ to +105℃
- Absolute maximum ratings
- Supply voltage (VDD)
- max.=5.5V
- Operating temperature range (Topr)
- -40 to +105℃
- Storage temperature (Tstg)
- -40 to +105℃
- Magnetic field strength (Hext)
- 200mT (160kA/m)
- Output voltage
-
Sin differential output 550mV Typ.
Cos differential output 550mV Typ. - Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 3,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Members-Only Content
HGAR Series
MEMBERS ONLY
Magnetic Simulator Manual
Magnetic Simulator Tool
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
