Part number

HCEPM0C002A

AirInput™ Panel HCEPM Series
MEMBERS ONLY
Contact

Basic information

Product Photo
Product Photo
Detection type
X-Y Type + Z value
Dedicated control software
With
Size
15.6 inch Wide

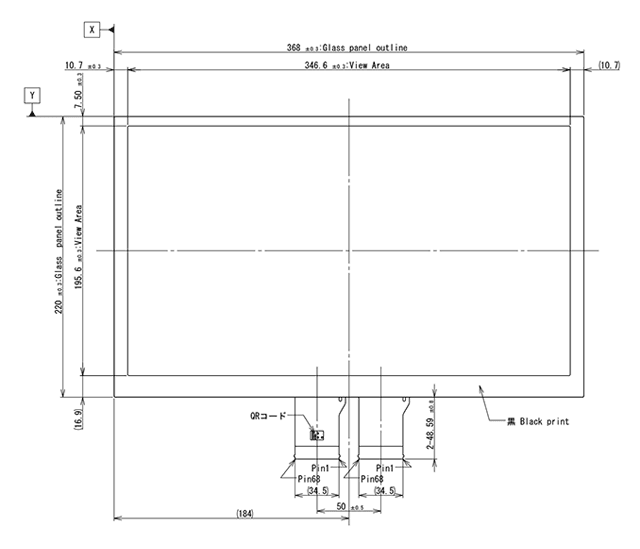

Panel dimensions
368.0×220.0×2.26mm
View area dimensions
346.6×195.6mm

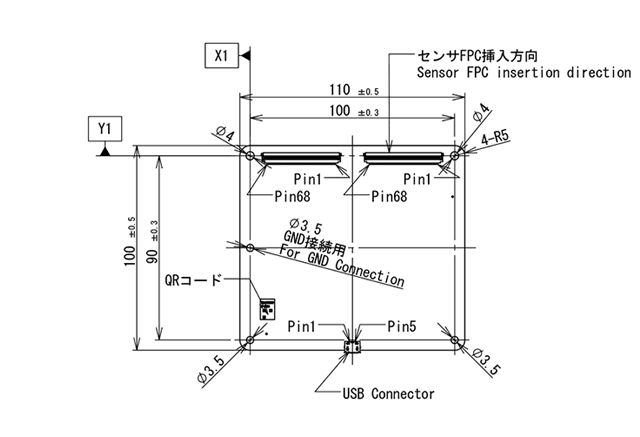

PC board dimensions
110.0×100.0mm
Output type
USB HID device
I/F connector
USB Micro Type-B
Current consumption
Typ.120mA

Specifications

Weight
450g
Output data
X-Y coordinates + Z value (1 finger)
Position accuracy
Touch input
X：±5mm　Y：±5mm
Mid-air input
X：±10mm　Y：±10mm
Detection range setting examples
Detection: 5-8cm hand/finger proximity detection
Selection: 3-5cm select action
Activation: 0-3cm activate action
Environmental conditions for operation
Temperature
0 to 40℃
Humidity
0 to 40℃: Up to 90% (no condensation)

Dedicated Control Software

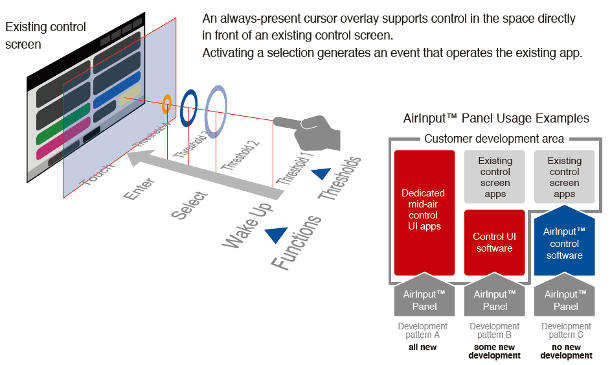

As an option for customers who wish to convert existing applications designed for touch operation into touchless applications but are unable to develop the software themselves, we also provide AirInput™ Panel dedicated control software for Windows. Installing the software allows customers to omit the software development process and utilize existing input screens in a touchless setup. Customers can adjust user interface settings, colors, sizes and other parameters on the settings screen to achieve the desired operating feel and realize a wide range of touchless operation scenarios.

Operation Confirmation/Settings App

For information on an operation confirmation/settings app, please inquire with an Alps Alpine sales representative.

Contact Us

Members-Only Content

HCEPM0C002A
MEMBERS ONLY
Application note
User's Manual
Operation Confirmation/Settings App Explanatory Information
Operation Confirmation/Settings App
Noise Monitor & Drive Frequency Setting App Instruction Manual
Noise Monitor & Drive Frequency Setting App

Notes are common to this series/models

  1. Included in the box for HCEPM0C002 is a license key for dedicated control software. (Being prepared as a bundled product for customer sample, low-volume requests)
  2. HCEPM0A006 cell electrode output values are UART output, therefore data processing needs to be performed on a PC.
Inquiries about Products
