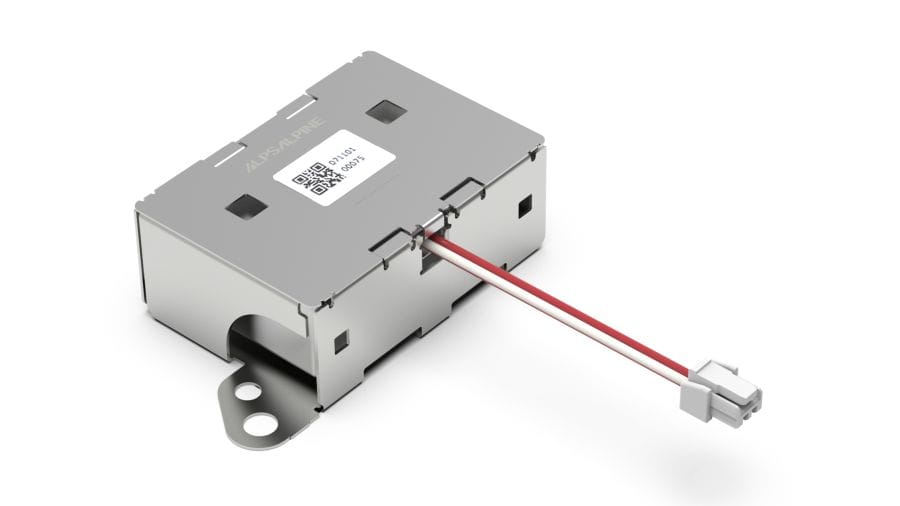

Part number
AFR14A901B
Heavy Type AFR14 Series
Automotive
MEMBERS ONLY
Basic information
- Type
- Heavy Type
- Resonance frequency
- 120Hz

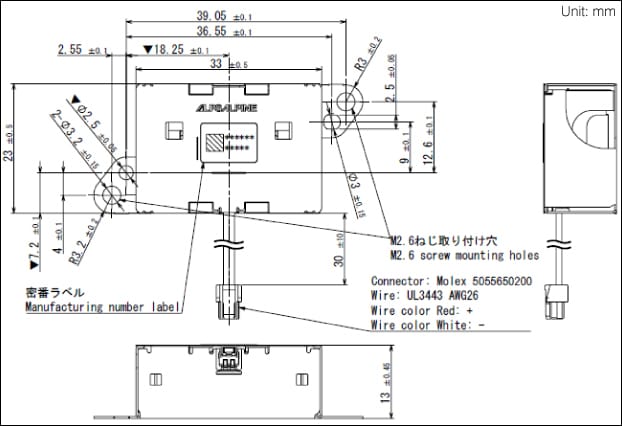

- Size
- 23.0×33.0×13.0mm
- Vibration Acceleration
- 15Gpp
- Drive voltage
- 6Vp-p (20 sine wave)
- Operating temperature
- -40℃ to ＋85℃
Specifications
- Resistance
- 10.2Ω±10% (@20℃)
- Minimum order unit(pcs.)
- Japan
- 200
- Export
- 200
Packing Specifications
Tray
- Number of packages (pcs.)
-
- 1 case / Japan
- 200
- 1 case / export packing
- 200
- Export package measurements (mm)
- 270×360×185
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
