Part number
UMSZ6

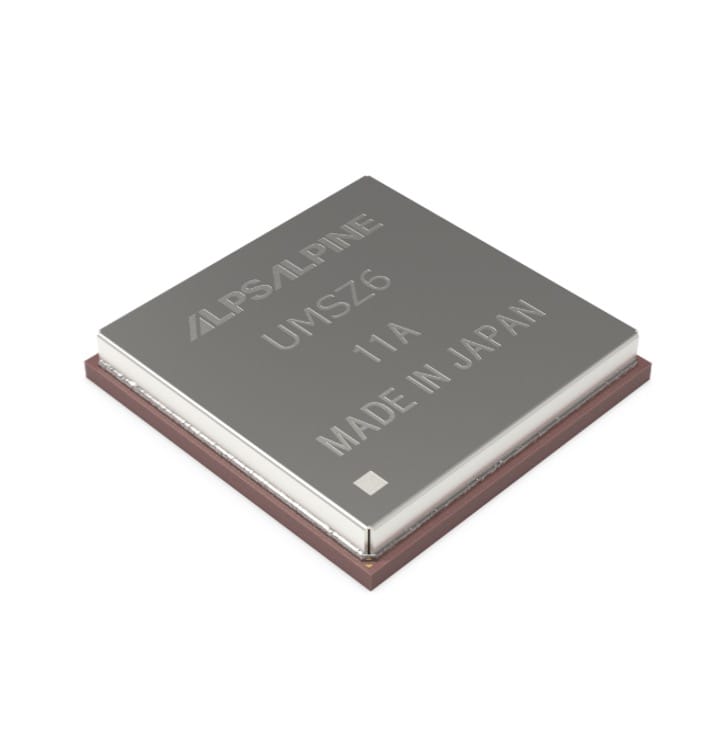

High Precision GNSS Module with Dead Reckoning. UMSZ6 Series
Automotive
MEMBERS ONLY
Basic information
- Mount type
- LGA (LGA : Land Grid Array Terminal)
- Dimensions (W x D x H)
- 17.8×18.0×3.11mm
- Volume/Weight
- 1.0ml. / T.B.D.g
- Host interface
- UART
Specifications
- Supported satellites
- GPS、GKONASS、BeiDou、Galileo、NAVIC、 QZSS、 SBAS
-
Time to first fix (TTFF)
The time taken from turning on the system to acquisition of an initial position fix - Hot Start
- 1
- Cold Start
- 26
- Sensitivity
- Cold Start
- -148dBm
- Tracking
- -167dBm
- Track Channels
- 62ch
- Supply voltage
- 1.8V
Frequency (MHz)
| Freq. (MHz) | L5 : 1176.45 | L1 : 1575.42 |
|---|---|---|
| GPS | L5 | L1C/A |
| QZSS | L5 | L1C/A, L1S |
| BeiDou | B2a | B1 : 1561.09 |
| Galileo | E5a : 1207 | E1 |
| GLONASS | - | LIOF : 1598.0625 - 1605.375 |
| NAVIC | L5 | - |
| SBAS | L5 | L1 |
Packing Specifications

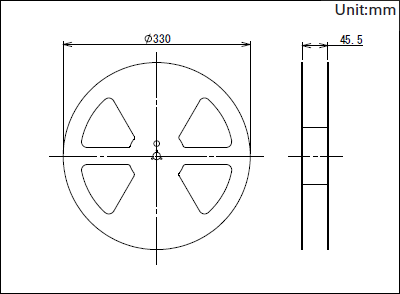

Taping
- Number of packages (pcs.)
-
- 1 reel
- 600 Max.
- 1 case / Japan
- 600 Max.
- 1 case / export packing
- 600 Max.
- Tape width (mm)
-
- Export package measurements (mm)
- 367×354×67
