Part number
UMCC1B
China Cellular V2X Communication Module for Automotive Use UMCC1B Series
Automotive
MEMBERS ONLY
Basic information
- Specifications
-
LTE-V PC5 mode4
3GPP R14 TS36.101, TS36.133

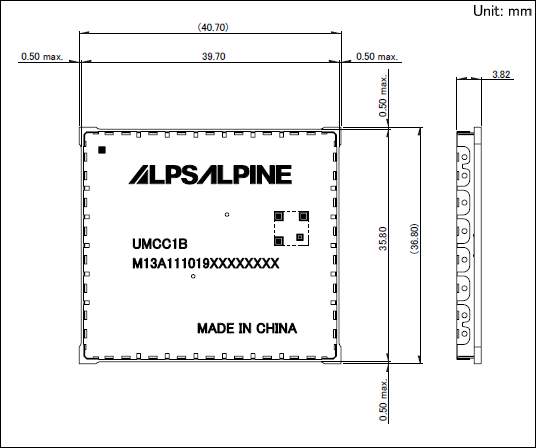

3GPP TR36.786 V14 - Dimensions (W x D x H)
- 35.8×39.7×3.82mm
- Volume/Weight
- 5.0ml/9.5g
- Interface
- USB/UART/SDIO/SPI/HSIC/I²C
Specifications
- Operating temperature range
- -40℃ to ＋85℃
- Frequencey
- 5905 to 5925MHz
- Output level
- +23dBm max.
- Supply voltage (V)
- 5.0V / 3.8V
- Mounting type
- SMD

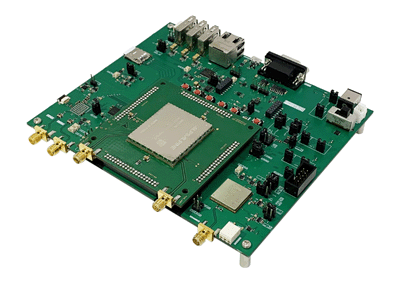

China Cellular V2X Communication Module for Automotive Use Evaluation Board
C-V2X/Application processor: UMCC1B※
GNSS: UMSZ4※, GPS/GLONASS or BeiDou/SBAS
Hardware Security Module: TBD, SubBoard configuration for versatility
USB Hub: USB 2.0 HSIC Hi-Speed 1-Port Hub
Ethernet: USB 2.0 to 10/100 Ethernet Controller
RS-422 Transceiver: S-422 Transceiver up to 2.5Mbps
12V power supply and onboard buck regulator
※：ALPSALPINE Products

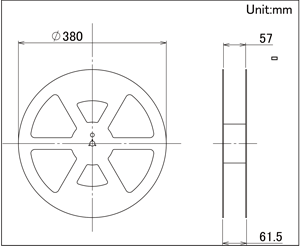

Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 330 Max
- 1 case / Japan
- 330 Max
- 1 case / export packing
- 330 Max
- Tape width (mm)
- 56
- Export package measurements (mm)
- 426x413x89
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
- This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
