Part number
RSA0K11V901S
Motor-driven Master Type (Motor K Fader)
Basic information
- Number of resistor elements
- Single-unit
- Direction of lever
- Vertical
- Travel
- 100mm
- Type
- Motor K fader (CP type)
- Lever type
- 9-T (T-Bar)
- Length of lever
- 8.2mm
- Total resistance
- 10kΩ
- Resistance taper
- 1B
- Terminal style
- Connector
- Touch sense track
- With
Specifications
- Operating temperature range
- -10℃ to +60℃
- Durability
- Operating life
- 300,000 cycles
- Electrical performance
- Total resistance tolerance
- ±20%
- Maximum operating voltage
- 500V AC, 10V DC
- Rated voltage of motor
- 10V DC
- Maximum current of motor
- 800mA or less (at 10V DC)
- Rated power
- 0.5W
- Insulation resistance
- 100MΩ min. 250V DC
- Voltage proof
- 250V AC for 1 minute
- Mechanical performance
- Operating force
- 0.4±0.25N
- Stopper strength
- 100N
- Lever push-pull strength
- 50N
- Lever wobble (Both side)
- 1.312mm
- Lever deviation (One side)
- 0.5mm max.
- Minimum order unit(pcs.)
- Japan
- 42
- Export
- 84

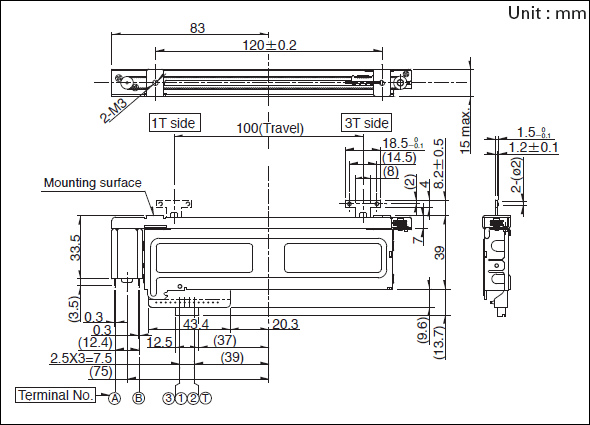

Circuit Diagram
Packing Specifications
Bulk
- Number of packages (pcs.)
-
- 1 case / Japan
- 42
- 1 case / export packing
- 84
- Export package measurements (mm)
- 524×374×201
Soldering Conditions
Reference for Hand Soldering
- Tip temperature
- 350℃ max.
- Soldering time
- 3s max.
- No. of solders
- 1 time
