Part number

RKJXW1014002

8-directional Stick Switch (with Encoder / Center-push Function) RKJXW Series
Automotive
Contact

Basic information

Product Photo
Product Photo
Number of operating shafts
Single-shaft
Shaft material
Metal
Directional resolution
8-direction
Stick switches
Travel
Directions
2±0.8mm
Center push
1.4±0.5mm
Encoder
Number of detent
30
Number of pulse
15
Dimensions (W×D×H)
36.0×48.5×26.5mm

Specifications

Operating temperature range
-40℃ to +85℃
Ratings (max.) (Resistive load)
10mA 5V DC
Electrical performance
Contact resistance (Directions & Center push)
1kΩ max.
Insulation resistance
100MΩ min. 250V DC
Voltage proof
360V AC for 2s
Mechanical performance
Directional operating force
2.5±1.5N
Push operating force
3±1.5N
Encoders detent torque
30±20 mN·m
Actuator strength
Push/pull directions
100N (Push)
Operating direction
50N
Durability
Operating life
Directions
Each direction 30,000 cycles
Center push
30,000 cycles
Encoder
30,000 cycles
Environmental performance
Cold
-40℃ 500h
Dry heat
85℃ 500h
Damp heat
60℃, 90 to 95%RH 500h
Minimum order unit(pcs.)
Japan
100
Export
100

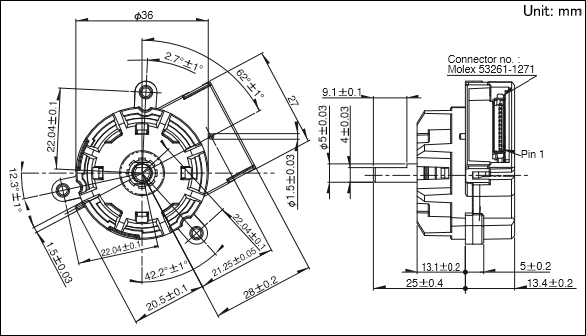

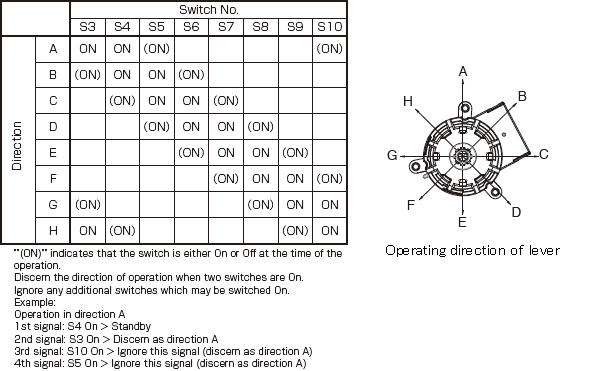

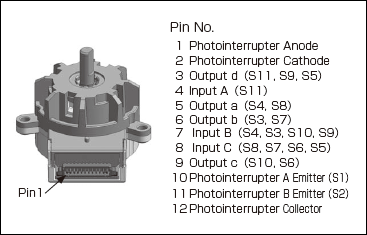

Output Relation Chart between Lever Position and ON Position

Open an expandable image in a separate window

Packing Specifications

Tray
Number of packages (pcs.)
1 case / Japan
100
1 case / export packing
100
Export package measurements (mm)
360×270×230

Notes are common to this series/models

  1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
  2. Please place purchase orders per minimum order unit (integer).
  3. This products can be used in vehicles.
    Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.

Cautions

  1. Appling load to terminals during soldering under certain conditions may cause deformation and electrical property degradation.
  2. Avoid use of water-soluble soldering flux, since it may corrode the switches.
  3. Check and conform to soldering requirements under actual mass production conditions.
  4. In soldering twice, make sure the solder joints should go down to normal temperature. Continuing heating will cause deformation of switch, loose and fracfored terminals, or may deteriorate electrical characteristics.
  5. Flux from around and above the PC board should not adhere to the switches.
  6. For the sizes of holes and patterns on a PC board for mounting a switch, refer to the recommended dimensions in the outline drawings.
  7. This switch is designed for manually operated units. Must not use this switch for a mechanical detection unit. For detection purposes, please use our detection switches.
  8. After mounting the switches, if you intend to put the board into an oven in order to harden adhesive for other parts, please consult with ALPS.
  9. Use of a through-hole PC board, or a PC board of different thickness from the recommendation will have a different heat stress. Verify the soldering requirements thoroughly before use.
  10. Solder the switches with detent at the detent position. Soldering switches fixed at the center of the detent may deform the detent mechanisms.
  11. No washing.
  12. Protect small and thin switches from external forces in the set mounting process.
  13. Use of the switches with voltage below 1V DC or current below 10μA may make contacts unstable.
    When using these switches in this way, please consult with us beforehand.
  14. The products are designed and manufactured for direct current resistance. Contact us
    for use of other resistances such as inductive (L) or capacitive (C).
  15. The switch will be broken if impact force or a greater stress than that specified is applied. Take a great care not to let the switch be subject to greater stress than specified.
  16. Do not apply a force from the side of the stem.
  17. Be sure to push the center of switch for "without-stem"type. Extreme care is required for a hinge structure type because the stem press position moves when it is pressed.
  18. Insert these switches to the specified mounting surface and mount them horizontally. If not mounted horizontally, these switches will malfunction.
  19. Use of the switches in a dusty environment may lead the dusts entering through the openings and cause imperfect contact or malfunction. Take this into account for set design.
  20. Corrosive gas if generated by peripheral parts of a set, malfunction such as imperfect contact may occur. Thorough investigation shall be required beforehand.
  21. Be aware of dust intrusion into a non dust-proof-type TACT Switch™.
  22. Storage
    1. Store the products as delivered, at a normal temperature and humidity, without direct sunshine and corrosive gas ambient. Use them at an earliest possible timing, not later than six months upon receipt.
    2. Store the key switches with the switch in the released position.
