Part number
RK097111U00S
9mm Size Metal Shaft Multi-ganged Type RK097 Series
Basic information


- Number of operating shafts
- Single-shaft
- Number of resistor elements
- Single-unit
- Control part orientation
- Horizontal
- Fixing method of bushing
- Screw
- Shaft types
- Flat
- Length of the shaft
- 25mm
- Detent
- Without
- Total resistance
- 5kΩ
- Resistance taper
- 1B

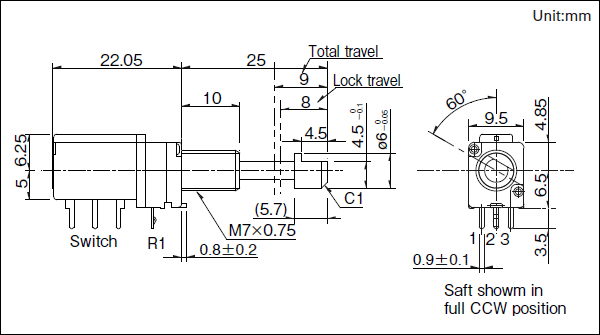

- Dimensions
- 9mm Size
Specifications
- Operating temperature range
- -20℃ to +70℃
- Electrical performance
- Total resistance tolerance
- ±20%
- Rated power
- 0.05W
- Maximum operating voltage
- 50V AC, 10V DC
- Residual resistance
- 20Ω max.
- Insulation resistance
- 100MΩ min. 250V DC
- Voltage proof
- 300V AC for 1 minute
- Mechanical performance
- Total rotational angle
- 300°(+10, -5)°
- Rotational torque
- 2 to 25mN·m
- Stopper strength
- 0.5N·m
- Push-pull strength
- 100N max.
- Vibration
- 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z and for 2 hours respectively
- Durability
- Operating life
- 15,000 cycles
- Specifications switches
- Switch type
- Push-lock switch
- Contact arrangement
- Double pole and double throw
- Travel
- 8±0.5mm
- Changeover force
- 8N max.
- Operating life
- 10,000 cycles
- Ratings
- 0.3A 12V DC
- Contact resistance
- 100mΩ for initial period,<br />200mΩmax. after operating life.
- Insulation resistance
- 100MΩ min. 250V DC
- Voltage proof
- 300V AC for 1 minute
- Attached mechanisms
- Attached mechanisms type
- Without
- Minimum order unit(pcs.)
- Japan
- 700
- Export
- 1,400
Mounting Hole Dimensions
Viewed from mounting side.
Example of Uses
Dimensions of Terminal
Dimensions of Bushings
Attached Parts
These parts are attached to the following products.
Packing Specifications
Tray
- Number of packages (pcs.)
-
- 1 case / Japan
- 700
- 1 case / export packing
- 1,400
- Export package measurements (mm)
- 540×373×181
Soldering Conditions
Reference for Dip Soldering
- Preheating
-
- Soldering surface temperature
- 100℃ max.
- Heating time
- 2 min. max.
- Dip soldering
-
- Soldering temperature
- 260±5℃ max.
- Soldering time
- 5±1s
- No. of solders
- 2 time max.
Reference for Hand Soldering
- Tip temperature
- 350℃ max.
- Soldering time
- 3s max.
- No. of solders
- 1 time
