Part number

RD6R1A0008

Rotary Type RD6R1A Series
Automotive
MEMBERS ONLY

Basic information

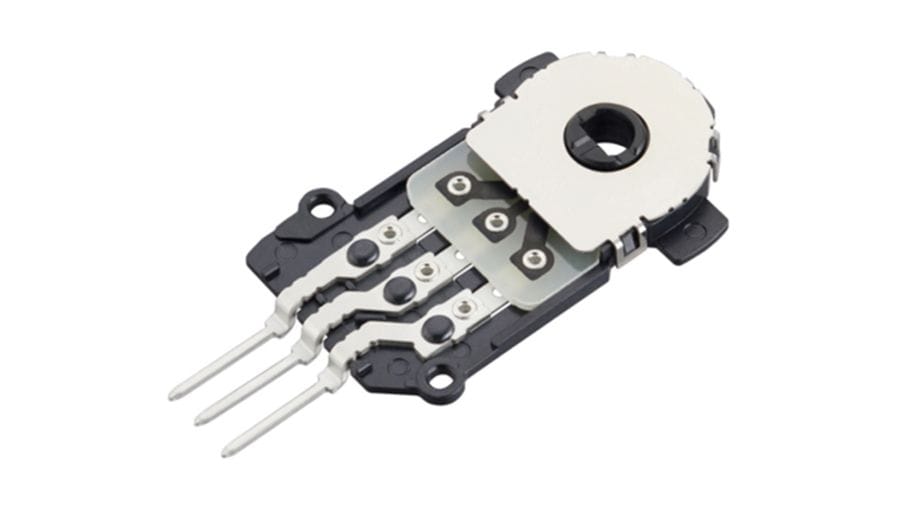

Product Photo
Product Photo
Mounting method
Connector type
Total resistance
3.8kΩ
Effective electrical range
320°
Linearity guarantee range
310°

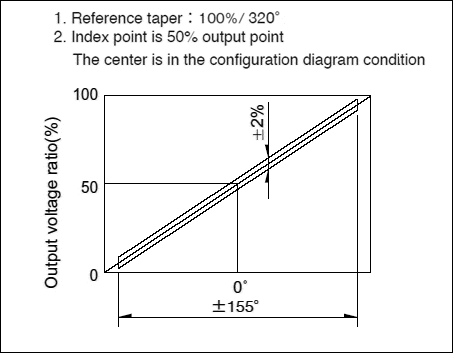

Linearity
±2%
Hollow shaft variation
φ3.53
Operating life
500,000 cycles
Rated voltage
5V DC

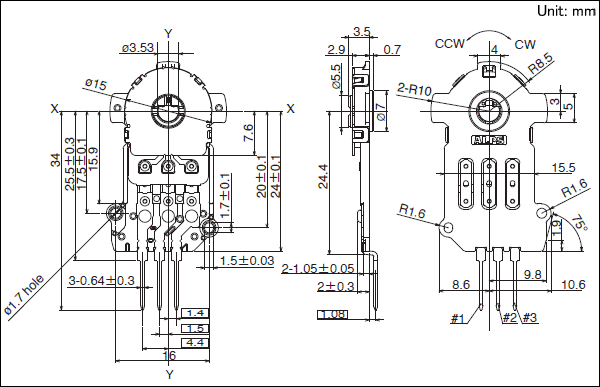

Dimensions
20.6×32.5×3.6mm

Specifications

Operating temperature range
-40℃ to +85℃
Mechanical performance
Rotational torque
100mN·m
Electrical performance
Total resistance tolerance
±20%
Rated voltage
5V DC
Environmental test
Cold
-40℃ 168h
Dry heat
85℃ 168h
Damp heat
80℃, 90 to 95%RH 96h
Minimum order unit(pcs.)
Japan
1,800
Export
1,800

Packing Specification

Tray
Number of packages (pcs.)
1 case / Japan
1,800
1 case / export packing
1,800
Export package measurements (mm)
540×360×250

Notes are common to this series/models

  1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
  2. Please place purchase orders per minimum order unit (integer).

Cautions

Use of Chemicals
The sensors make use of synthetic resins, therefore avoid use in environments where there is a strong presence of gases from chemicals such as ammonia, amines, alkaline aqueous solutions, aromatic hydrocarbons, ketones, esters and halogenated hydrocarbons.
Measures to Deal with Noise Problems
While data is being received from the sensor, on rare occasions, penetrating external noise may cause interference with the outputs.
To minimize the probability of this phenomenon pay attention to the following when you program the relevant software
ex)
  • Receiving of data should always be repeated a number of times to ensure that you obtain a mean value.
  • Have the system determine when/how to invalidate any data received in error.
  • When doubt occurs let the system receive the subject data again and reconfirm that you have eliminated the anomaly.
Soldering
Avoid wiring and soldering that causes the solder to seep through to the top of the PC board (as illustrated). This can lead to a contact failure in the terminal section. If solder seepage is unavoidable, please consult with us.
Connection Impedance
Resistive position sensors are constructed in a way that contact resistance (R1 below) occurs within the sensor. To reduce the effect of contact resistance (R1), set the impedance within the circuit connected to the output terminal to greater than 1MΩ.
Dew Condensation
Avoid using the sensor where dew or water vapor might be caused to condense on the surface of the resistor - deterioration of insulation or shorting may occur.
Storage
  1. Store the products as delivered, at a normal temperature and humidity, without direct sunshine and corrosive gas ambient. Use them at an earliest possible timing, not later than six months upon receipt.
  2. After breaking the seal, keep the products in a plastic bag to shut out ambient air, store them in the same environment as above, and use them up as soon as possible.
  3. Do not stack too many switches.

Measurement and Test Methods

Resistive Position Sensor
Total Resistance
Unless otherwise specified, total resistance is the resistance measured between resistor terminals 1 and 3.
Rated Voltage
The rated voltage corresponding to the rated power shall be determined by the following equation. When the resulting rated voltage exceeds the maximum operating voltage of a specific resistor, the maximum operating voltage shall be taken as the rated voltage.
