Part number
HSPPAR003D

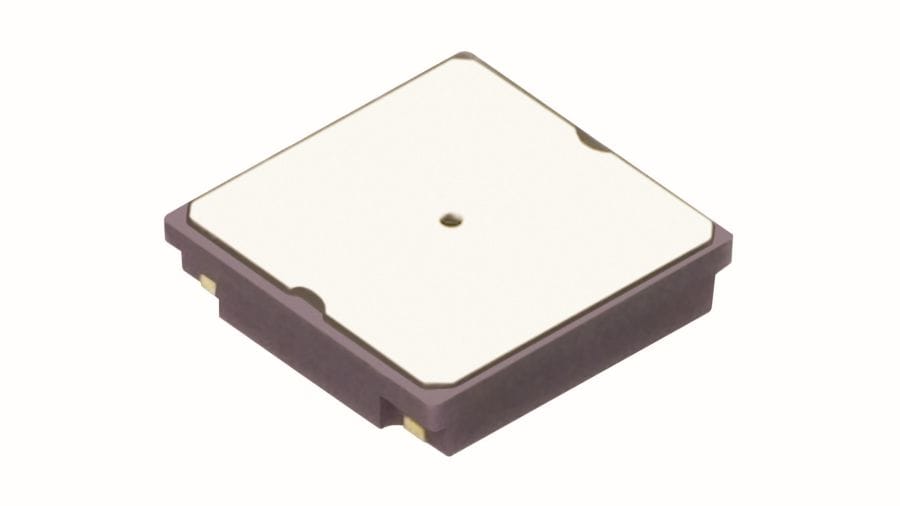

MEMS Pressure Sensor HSPPAR Series
MEMBERS ONLY
Basic information

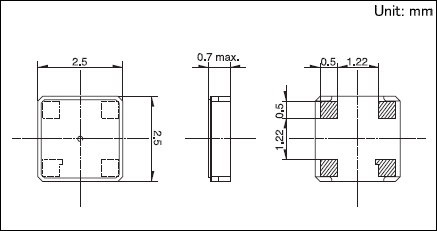

- Size
- 2.5×2.5×0.7mm
- Function
- Atmospheric pressure detection
- Pressure type
- Absolute pressure
- Features
- Pressure sensor element contained within housing
- Interface
- Differential voltage
- Output
- 44mV Full Scale
Specifications
- Operating temperature range
- -20℃ to +85℃
- Output voltage/110kPa
- 79mV
- Output voltage/101.3kPa
- 72.6mV
- Pressure measurement range
- 500 to 1100hPa
- Full-scale voltage
- 44mV
- Temperature characteristics of offset voltage
- -4 to +6%FS
- Temperature characteristics of span voltage
- -4 to +4%FS
- Bridge resistance
- 5 to 7kΩ
- Output type
- Differential voltage
- Measured pressure type
- Absolute pressure
- Recommended power supply
- Icc=0.55mA
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
