Part number
HSLCMB002A
Capacitive Sensor IC HSLCMB Series
Automotive
MEMBERS ONLY
Basic information
- Package specifications

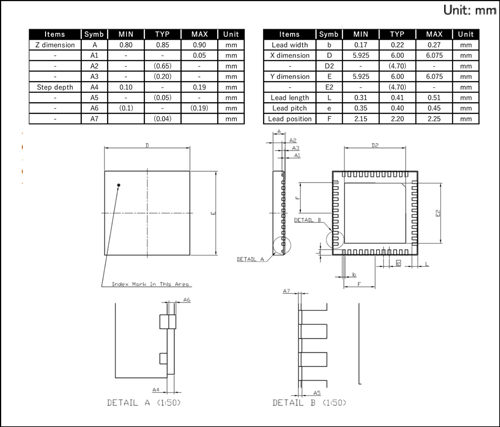

- QFN 48pin wettable flank
- Type
- Supports absolute self-capacitance detection/mutual capacitance detection
- Operating voltage
- 4.75 to 5.5V
- Operating temperature range
- -40 to +105℃
- Current consumption
-
In operation: 14.5 mA (typ.) *Absolute self-capacitance measurement
Standby: 21 µA (typ.) - CPU
- 32bit RISC CPU SYNOPSYS ARC EM4TM 21MHz
- No. of sensing electrodes
- 16
- Interface
- SPI/UART
- Reliability test standard
- AEC-Q100 grade2
- Functional safety
- -
- Firmware
- Standard firmware programmed
Specifications
- Size
- 6.0×6.0×0.9mm
Demo Featuring This Capacitive IC
Video of a demo set showing mid-air input and water level sensing based on high-sensitivity capacitive sensing technology. The demo set employs this capacitive IC.
Members-Only Content
HSLCMB Series
MEMBERS ONLY
Application Software
Application user manual
Application install manual
16ch SENSOR Board E002A Instructions
8ch SENSOR Board E003A Instructions
2ch SENSOR Board E001A Instructions
WLS SENSOR Board WLS001A/2A Instructions
IC Board ICB001C Instructions
Control Connector SDB003A-N Instructions
HSLCMB002A
MEMBERS ONLY
White Paper: Capacitive Sensor ICs
datasheet
