Part number
HSLCMB001A
Capacitive Sensor IC HSLCMB Series
Automotive
MEMBERS ONLY
Basic information
- Package specifications
- QFN 48pin
- Type
- Supports absolute self-capacitance detection/mutual capacitance detection
- Operating voltage
- 4.75 to 5.5V
- Operating temperature range
- -40 to +105℃
- Current consumption
-
In operation: 14.5 mA (typ.) *Absolute self-capacitance measurement
Standby: 21 µA (typ.) - CPU
- 32bit RISC CPU SYNOPSYS ARC EM4TM 21MHz
- No. of sensing electrodes
- 16
- Interface
- SPI/EUART
- Reliability test standard
- AEC-Q100 grade2
- Functional safety
- ASIL-B
- Firmware
- Firmware unprogrammed
Specifications

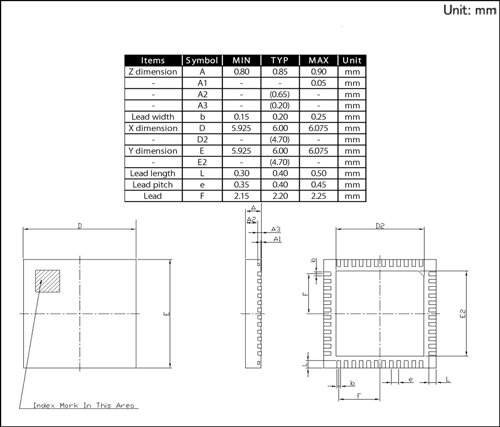

- Size
- 6.0×6.0×0.9mm
Demo Featuring This Capacitive IC
Video of a demo set showing mid-air input and water level sensing based on high-sensitivity capacitive sensing technology. The demo set employs this capacitive IC.
