Part number
HSHCAL001B
Humidity Sensor Capacitive Type HSHCA (SMD) Series
MEMBERS ONLY
Basic information

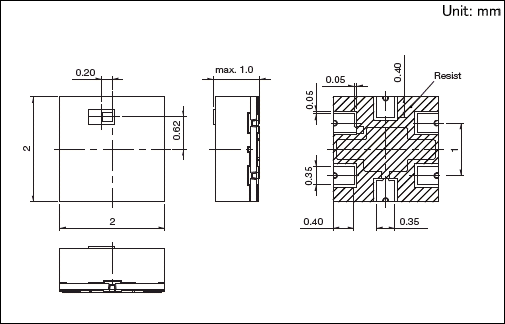

- Size
- 2.0×2.0×0.88mm
- Features
- I²C digital output and temperature measurement function
- Humidity range
- 0 to 100％RH
- Accuracy
- ±1.5％RH (25℃, 50%RH)
Specifications
- Operating temprature
- -20℃ to +85℃
- Supply voltage
- 1.8V ±5%
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
