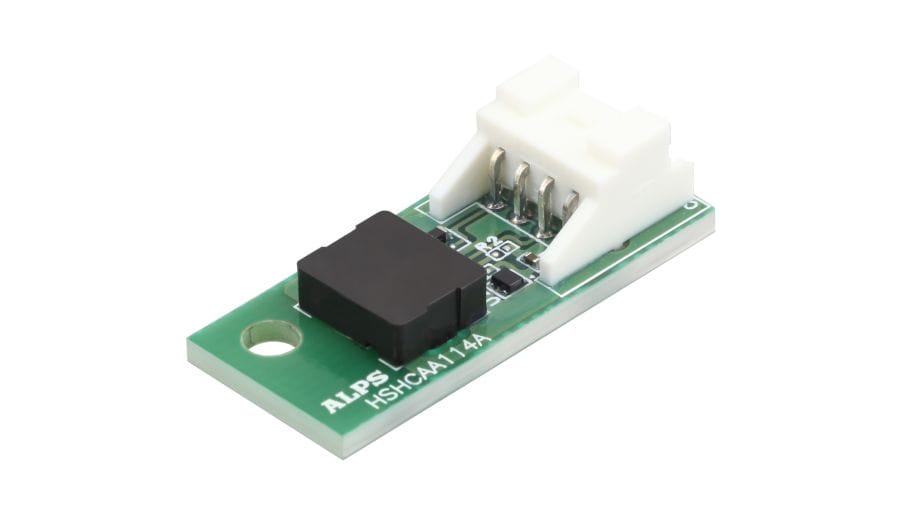

Part number
HSHCAA114A
Humidity Sensor Capacitive Type HSHCA (Connector) Series
MEMBERS ONLY
Basic information

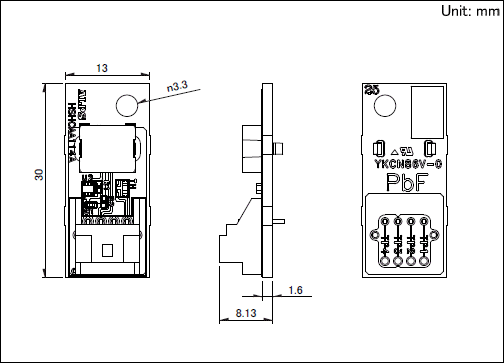

- Size
- 30.0×13.0mm
- Features
- With moisture-resistant coating
- Humidity range
- 0 to 100％RH
- Supply voltage
- 4.75 to 5.25V
Specifications
- Accuracy
- ±5%RH (25℃, 50%RH)
- Operating temprature
- -20℃ to +60℃
- Thermistor resistance
- 10±3%kΩ
- Minimum order unit(pcs.)
- Japan
- 1,000
- Export
- 1,000
Packing Specifications
Tray
- Number of packages (pcs.)
-
- 1 case / Japan
- 1,000
- 1 case / export packing
- 1,000
- Export package measurements (mm)
- 360×240×307
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
