Part number
HSHCAA006A

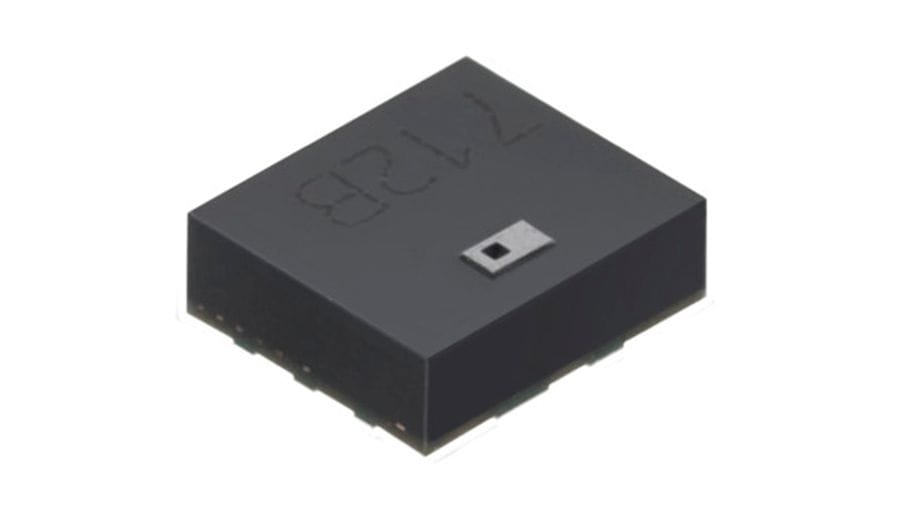

Humidity Sensor Capacitive Type HSHCA (SMD) Series
MEMBERS ONLY
Basic information

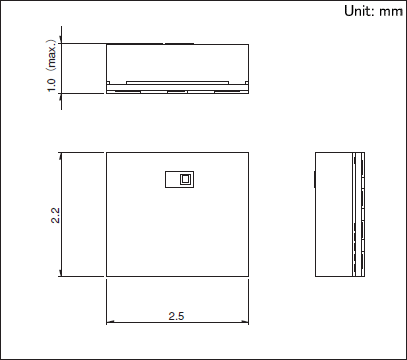

- Size
- 2.5×2.2×1.0mm
- Features
- Humidity sensor with analog output
- Humidity range
- 0 to 100%RH
- Accuracy
- ±5%RH
Specifications
- Operating temprature
- -10℃ to +85℃
- Supply voltage
- 2.2 to +3.6V
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
-
- 1 case / Japan
- 3,000
-
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
