Part number
HSFPAR007A

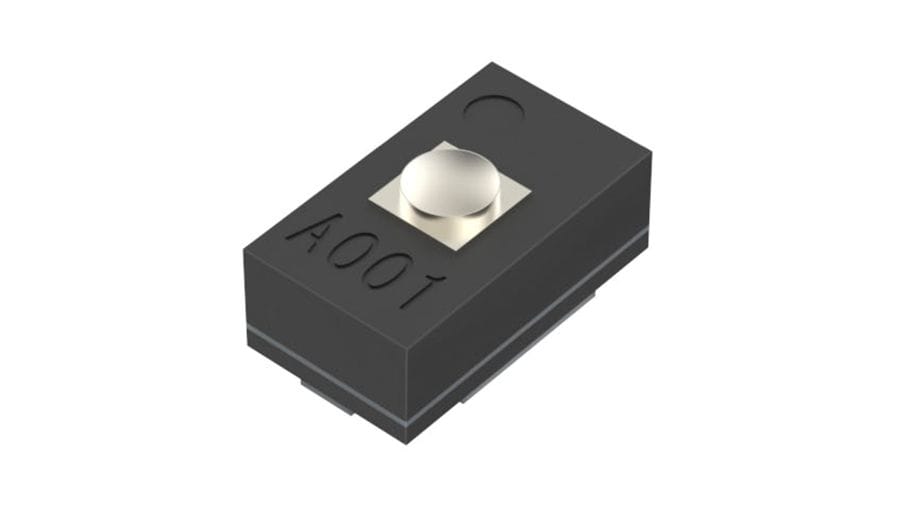

Force Sensor HSFPAR Series
MEMBERS ONLY
Basic information

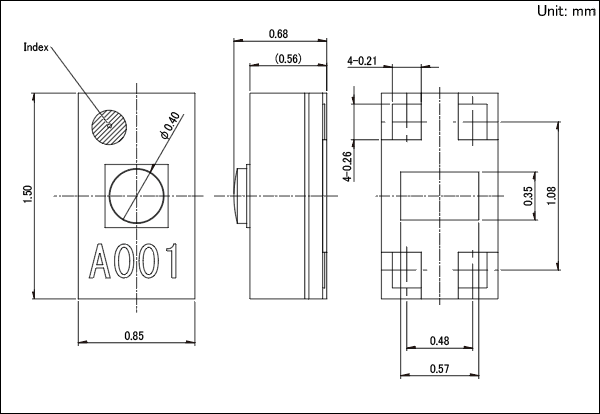

- Size
- 1.5×0.85×0.68mm
- Function
- Load detection
- Features
- High-sensitivity load detection with a compact package
- Force range
- 0 to 8N
- Supply voltage
- 1.5 to 3.6V
- Max load rating
- 55N
Specifications
- Operating temperature range
- -40℃ to +85℃
- Sensitivity
- 2.5mV/N
- Linearity
- <2% FS
- Operating life
- 1,000,000 cycles
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders for taping products per minimum order unit (1 reel or a case).
