Part number
HGPRDT006A
Incremental Encode Output Type HGPRDT Series
Automotive
MEMBERS ONLY
Basic information
- Package specifications
- SOT23type
- Type
- Switching (Surface mount)
- Size
- 2.9×2.8×1.1mm
- Function
- Alternating output/Direction of rotation output
- Operating magnetic field
-
Hon: +0.8mT Typ
Hoff: -0.8mT Typ - Drive voltage
- 12V Typ. (3～30V)
- Current consumption
- 1.6mA Typ. (at VDD=12V)
Specifications
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000

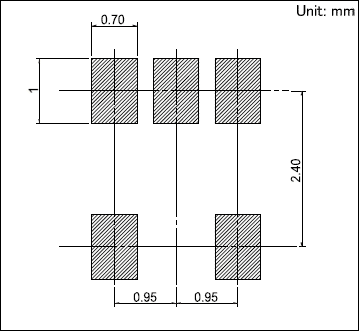

Land Dimensions
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Members-Only Content
HGPRDT Series
MEMBERS ONLY
Magnetic Simulator Manual
Magnetic Simulator Tool
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
