Part number
HGPRDT005A
Incremental Encode Output Type HGPRDT Series
Basic information
- Package specifications
- SOT23 type
- Type
- Encoder (Surface mount)
- Size
- 2.9×2.8×1.1mm
- Function
-
2-phase
alternating output - Operating magnetic field
-
Hon: +1mT
Hoff: -1mT - Drive voltage
- Typ. 12V (3V min. to 30V max)
- Current consumption
- 3.5mA Ave. (at VDD=12V)
Specifications
- Operating temperature range
- -40℃ to +125℃
- Sampling period
- Continuous drive
- 2-phase element interval
- 0
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000

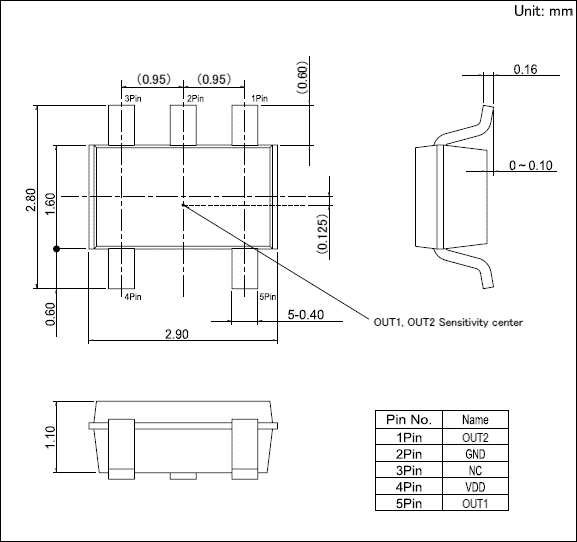

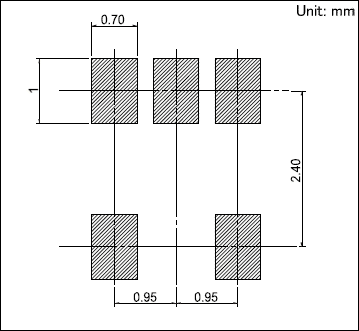

Land Dimensions
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Members-Only Content
HGPRDT Series
MEMBERS ONLY
Magnetic Simulator Manual
Magnetic Simulator Tool
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
