Part number
HGDVST021A
Magnetic Switch for Wide Drive Voltage Range HGDVST Series
Automotive
Basic information
- Package specifications
- SOT23 type
- Type
- Switching (Surface mount)

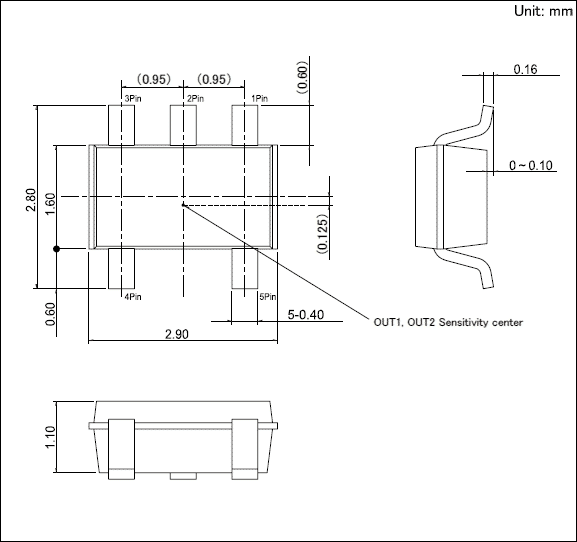

- Size
- 2.9×2.8×1.1mm
- Function
- Single polarity/Single output
- Operating magnetic field
- 2mT
- Drive voltage
- 3 to 30V
- Current consumption
- 1mA Ave. (at VDD=12V)
Specifications
- Operating temperature range
- -40℃ to +140℃
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000

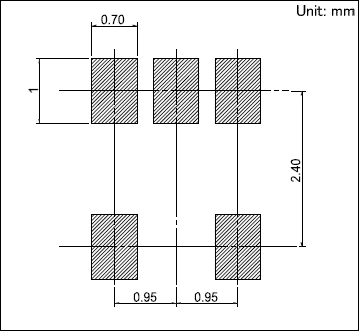

Land Dimensions
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 3,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Members-Only Content
HGDVST Series
MEMBERS ONLY
Magnetic Simulator Manual
Magnetic Simulator Tool
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Place your purchase order in N minimum package units (N: integer).
