Part number
HGDLPT032A
Switching Output Type HGDL* Series
Sensors
MEMBERS ONLY
Basic information
- Package specifications
- SOT23 type
- Type
- Switching (Surface mount)
- Size
- 2.9×2.8×1.1mm
- Function

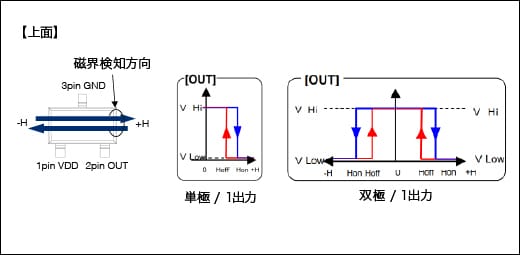

- Dual polarity/Single output
- Operating magnetic field
- ±3.0mT
- Drive voltage
- Typ. 5V (3.0V min. to 5.5V max.)
- Current consumption
- Typ. 1.65mA (at VDD=5V)
Specifications
- Operating temperature range
- -40℃ to +85℃
- Operating magnetic field
- Hon (+)
- -
- Hoff (+)
- -
- Hon (+/-)
- 2.3 to 3.7mT（typ. 3.0mT）
- Hoff (+/-)
- 1.5 to 2.9mT（typ. 2.2mT）
- Absolute maximum ratings
- Supply voltage (VDD)
- min. -0.3V, max. 6.0V
- Output (lout)
- min. -0.5mA, max. 0.5mA
- Operating temperature range (Topr)
- -40℃ to +85℃
- Storage temperature (Tstg)
- -40℃ to +125℃
- Electric specification
- Supply voltage (VDD)
- 3.0 to 5.5V（Typ.: 5.0V）
- Supply current (IDD)
- Max. 3.0mA（Typ.: 1.65mA）
- Drive pulse period (Tp)
- 12.2 to 48.8μs（Typ.: 24.4μs）
- Pulse width (Td)
- 6.1 to 24.4μs（Typ.: 12.2μs）
- Output voltage (V Hi)
- VDD-0.4V
- Output voltage (V Low)
- 0.4V
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000
Land Dimensions
Circuit Condition

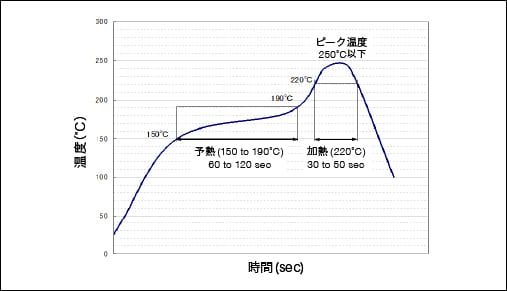

Soldering Conditions
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
- High and low sensitivity types also available. Please contact us for details.
- Some products can be provided halogen-free. Please contact us for details.
