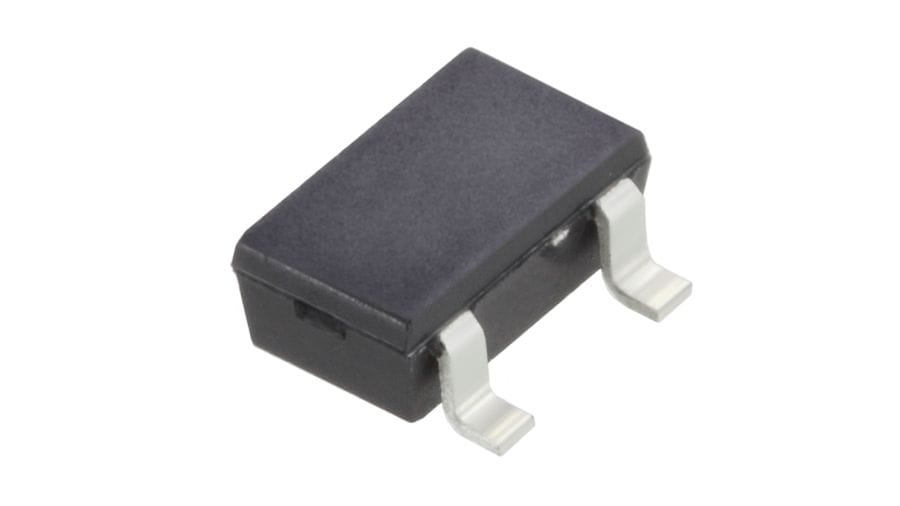

Part number
HGDFST021B
Switching Output Type HGDE*/HGDF* Series
MEMBERS ONLY
Basic information
- Package specifications
- SOT23 type
- Type
- Switching (Surface mount)
- Size
- 2.9×2.8×1.1mm
- Function
- Single polarity/Single output
- Operating magnetic field
- 2.0mT
- Drive voltage
- Typ. 5V (4.5V min. to 5.5V max.)
- Current consumption
- Typ. 1.65mA (at VDD=5V)
Specifications
- Operating temperature range
- -40℃ to +85℃
- Minimum order unit(pcs.)
- Japan
- 3,000
- Export
- 3,000

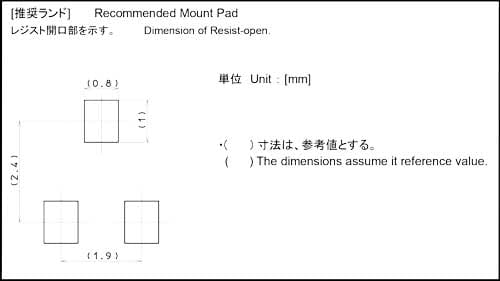

Land Dimensions

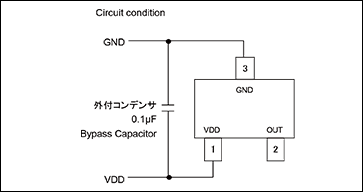

Circuit Condition

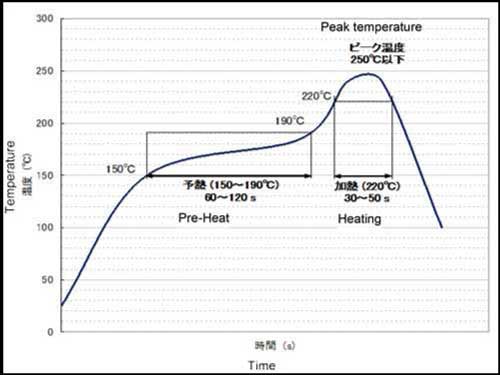

Soldering Conditions
Packing Specifications
Taping
- Number of packages (pcs.)
-
- 1 reel
- 3,000
- 1 case / Japan
- 3,000
- 1 case / export packing
- 45,000
- Tape width (mm)
- 8
- Export package measurements (mm)
- 210×210×230
Members-Only Content
HGDE*/HGDF* Series
MEMBERS ONLY
Magnetic Simulator Manual
Magnetic Simulator Tool
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
- High and low sensitivity types also available. Please contact us for details.
- Some products can be provided halogen-free. Please contact us for details.
