Part number
AFT14A906A
Hybrid Tough Type AFT Series
Automotive
MEMBERS ONLY
Basic information
- Type
- Hybrid Tough Type
- Resonance frequency
- 160Hz (Low), 320Hz (High)

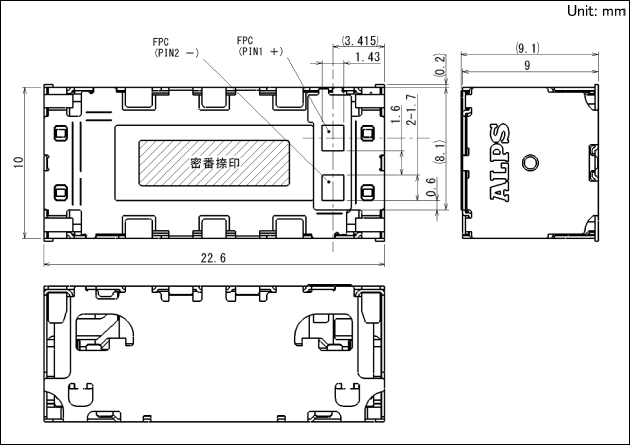

- Size
- 10.0×22.6×9.0mm
- Vibration Acceleration
-
3Gpp at 160Hz
2.28Gpp at 320Hz - Drive voltage
- 3V (square wave 3pulse)
- Operating temperature
- -40℃ to ＋85℃
Specifications
- Resistance
- 8Ω±10% (@20℃)
- Minimum order unit(pcs.)
- Japan
- 1000
- Export
- 1000
Packing Specifications
Tray
- Number of packages (pcs.)
-
- 1 case / Japan
- 1,000
- 1 case / export packing
- 1,000
- Export package measurements (mm)
- 270×360×185
Notes are common to this series/models
- This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
- Please place purchase orders per minimum order unit (integer).
