Products Search

Product Search Top

*Change the product type and size here

Mount type

Snap-in Type

Surface Mount Type

Width

Part Number

Dimensions(W×D×H)mm

Product

		Operating force(N)
		1 or less	2 or less	3 or less	4 or less	5 or less	10 or less

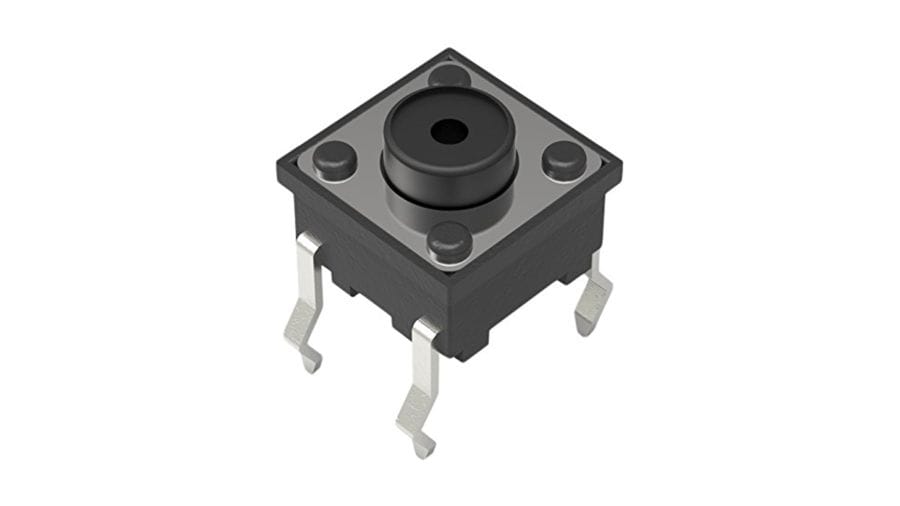

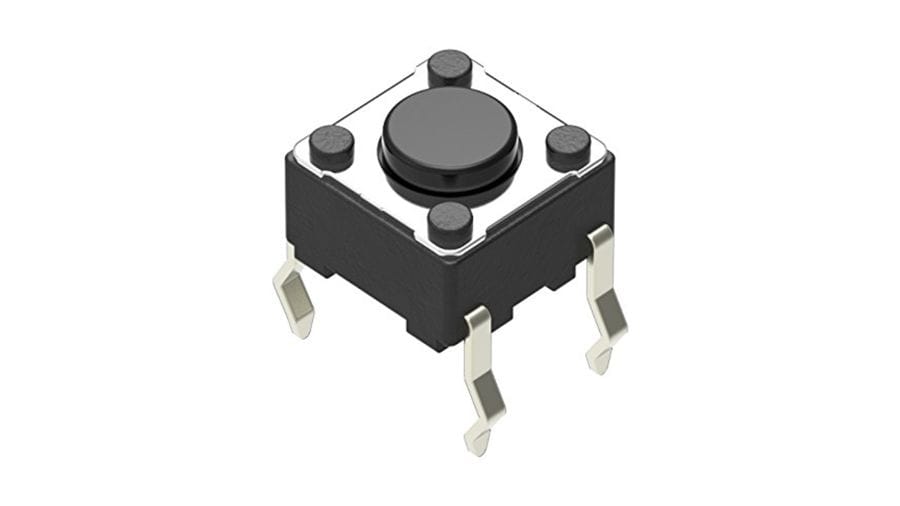

Travel(mm)	0.25	SKHHAJA010 6.0×6.0×4.3 Top push type Automotive Selection SKHHAKA010 6.0×6.0×5.0 Top push type Automotive Selection SKHHANA010 6.0×6.0×9.5 Top push type Automotive Selection SKHHBVA010 6.0×6.0×7.0 Top push type Automotive Selection SKHHCWA010 6.0×6.0×7.3 Joint stem type Automotive Selection SKHHDHA010 6.0×6.0×17.0 Top push type Automotive Selection SKHHDTA010 6.0×6.0×13.0 Top push type Automotive Selection SKHHPJA010 6.0×6.0×4.3 With ground terminal type Automotive Selection SKHHPKA010 6.0×6.0×5.0 With ground terminal type Automotive Selection SKHHPNA010 6.0×6.0×9.5 With ground terminal type Automotive Selection SKHHQVA010 6.0×6.0×7.0 With ground terminal type Automotive Selection SKQJAAA010 6.6×6.6×5.0 Top push type SKQJADA010 6.6×6.6×7.0 Top push type SKQJAJA010 6.6×6.6×9.5 Top push type	SKHHALA010 6.0×6.0×4.3 Top push type Automotive Selection SKHHAMA010 6.0×6.0×5.0 Top push type Automotive Selection SKHHAPA010 6.0×6.0×9.5 Top push type Automotive Selection SKHHBWA010 6.0×6.0×7.0 Top push type Automotive Selection SKHHDAA010 6.0×6.0×7.3 Joint stem type Automotive Selection SKHHDJA010 6.0×6.0×17.0 Top push type Automotive Selection SKHHDUA010 6.0×6.0×13.0 Top push type Automotive Selection SKHHPLA010 6.0×6.0×4.3 With ground terminal type Automotive Selection SKHHPMA010 6.0×6.0×5.0 With ground terminal type Automotive Selection SKHHPPA010 6.0×6.0×9.5 With ground terminal type Automotive Selection SKHHQWA010 6.0×6.0×7.0 With ground terminal type Automotive Selection SKQJABA010 6.6×6.6×5.0 Top push type SKQJAEA010 6.6×6.6×7.0 Top push type SKQJAKA010 6.6×6.6×9.5 Top push type	SKHHAQA010 6.0×6.0×4.3 Top push type Automotive Selection SKHHARA010 6.0×6.0×5.0 Top push type Automotive Selection SKHHBSA010 6.0×6.0×9.5 Top push type Automotive Selection SKHHBYA010 6.0×6.0×7.0 Top push type Automotive Selection SKHHDGA010 6.0×6.0×7.3 Joint stem type Automotive Selection SKHHPQA010 6.0×6.0×4.3 With ground terminal type Automotive Selection SKHHPRA010 6.0×6.0×5.0 With ground terminal type Automotive Selection SKHHQNA010 6.0×6.0×9.5 With ground terminal type Automotive Selection SKHHQYA010 6.0×6.0×7.0 With ground terminal type Automotive Selection	SKHHCQA010 6.0×6.0×5.0 Top push type Automotive Selection		SKHHCRA010 6.0×6.0×5.0 Top push type Automotive Selection

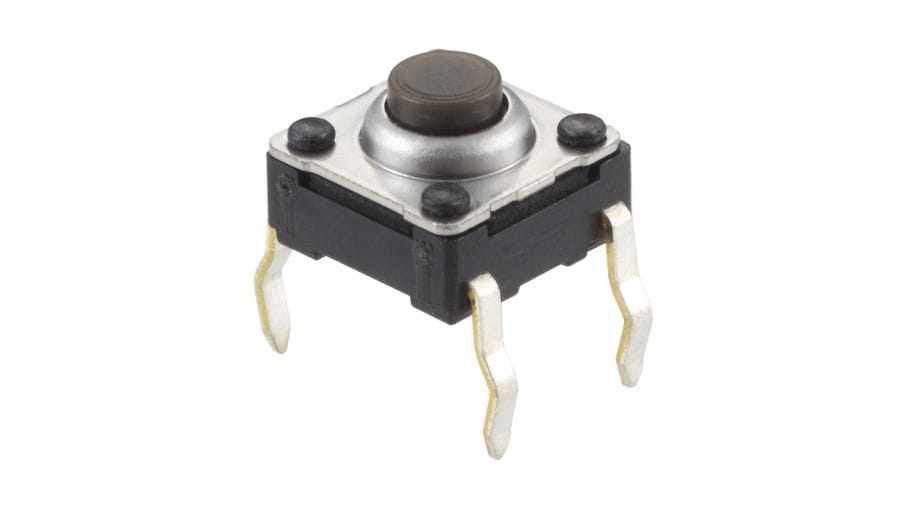

Travel(mm)	0.3		SKHWALA010 6.0×6.0×4.3 SKHWAPA010 6.0×6.0×5.0	SKHWAQA010 6.0×6.0×5.0 SKHWARA010 6.0×6.0×4.3

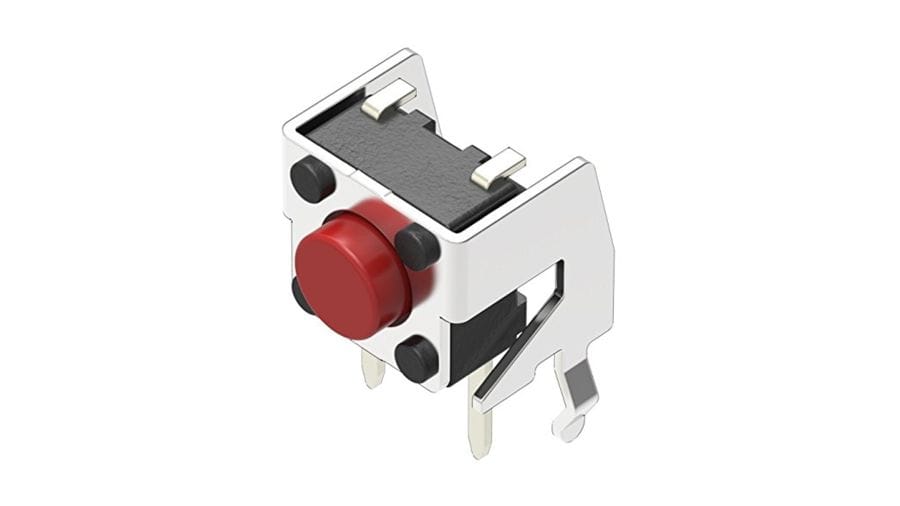

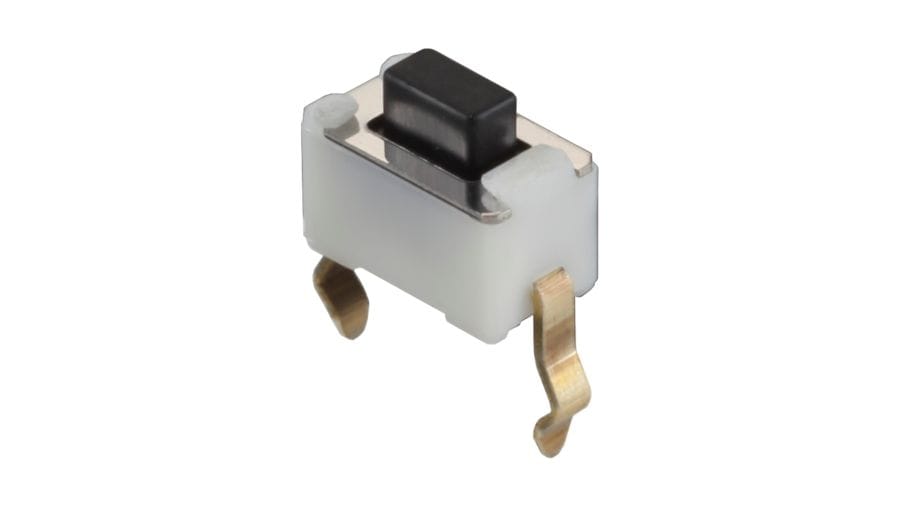

Travel(mm)	0.25	SKHHLMA010 6.2×7.85×7.1 Side push type SKHHLQA010 6.2×12.35×7.1 Side push type SKHHLUA010 6.2×9.85×7.1 Side push type SKHHNHA010 6.2×19.85×7.1 Side push type SKHLAAA010 6.0×3.5×4.3 Top push type Automotive Selection SKHLABA010 6.0×3.5×5.0 Top push type Automotive Selection	SKHHLNA010 6.2×7.85×7.1 Side push type SKHHLRA010 6.2×12.35×7.1 Side push type SKHHLVA010 6.2×9.85×7.1 Side push type SKHHNJA010 6.2×19.85×7.1 Side push type SKHLACA010 6.0×3.5×4.3 Top push type Automotive Selection SKHLADA010 6.0×3.5×5.0 Top push type Automotive Selection	SKHHLPA010 6.2×7.85×7.1 Side push type SKHHLSA010 6.2×12.35×7.1 Side push type SKHHLWA010 6.2×9.85×7.1 Side push type SKHHNKA010 6.2×19.85×7.1 Side push type SKHLAJA010 6.0×3.5×4.3 Top push type Automotive Selection SKHLAKA010 6.0×3.5×5.0 Top push type Automotive Selection

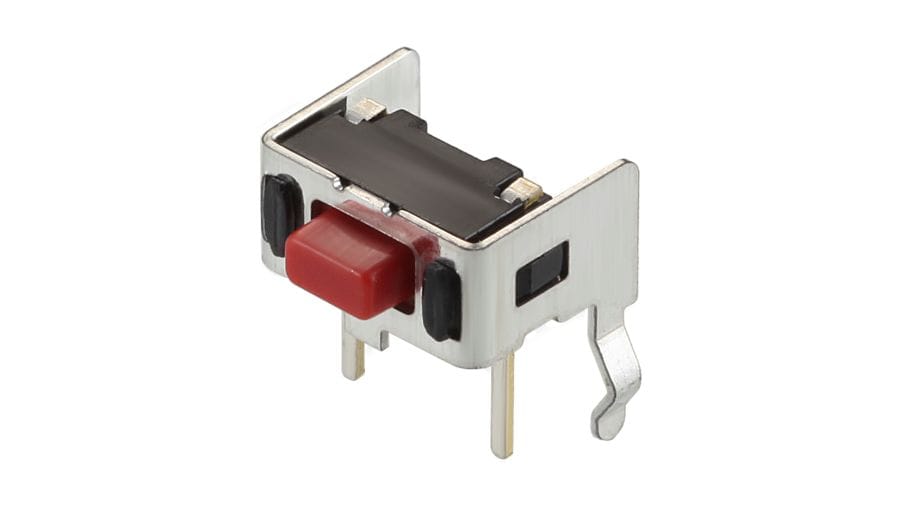

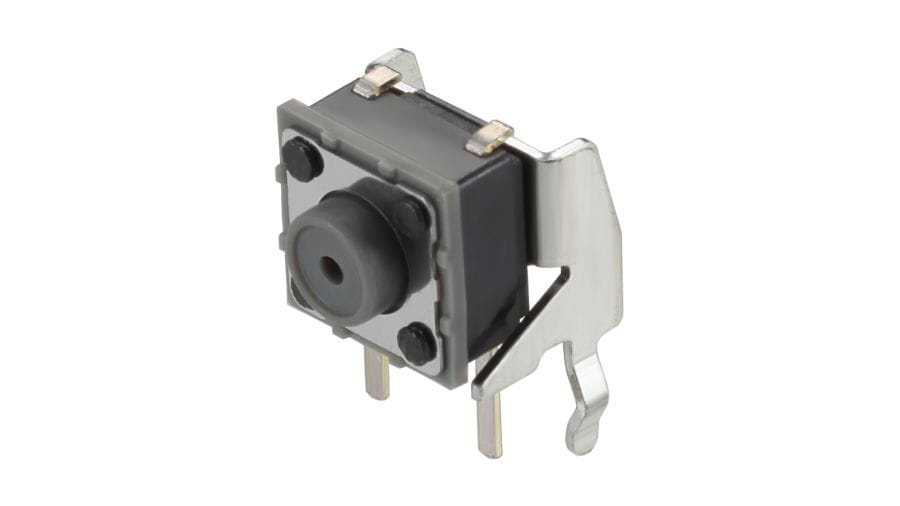

Travel(mm)	0.25	SKHLLAA010 7.3×6.72×4.3 Side push type Automotive Selection SKHLLCA010 7.3×6.72×4.3 Side push type Automotive Selection SKQJLAA010 7.0×7.85×7.0 Side push type	SKHLLBA010 7.3×6.72×4.3 Side push type Automotive Selection SKHLLDA010 7.3×6.72×4.3 Side push type Automotive Selection SKQJLBA010 7.0×7.85×7.0 Side push type	SKHLLFA010 7.3×6.72×4.3 Side push type Automotive Selection

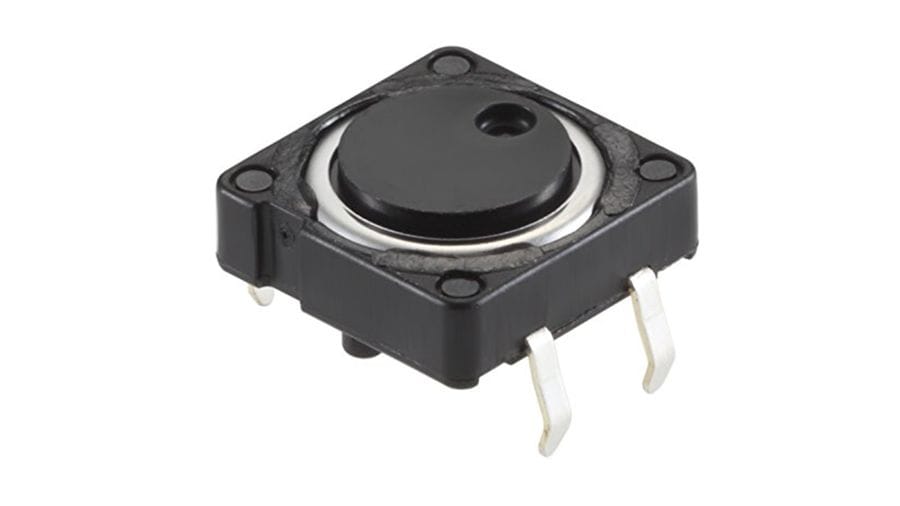

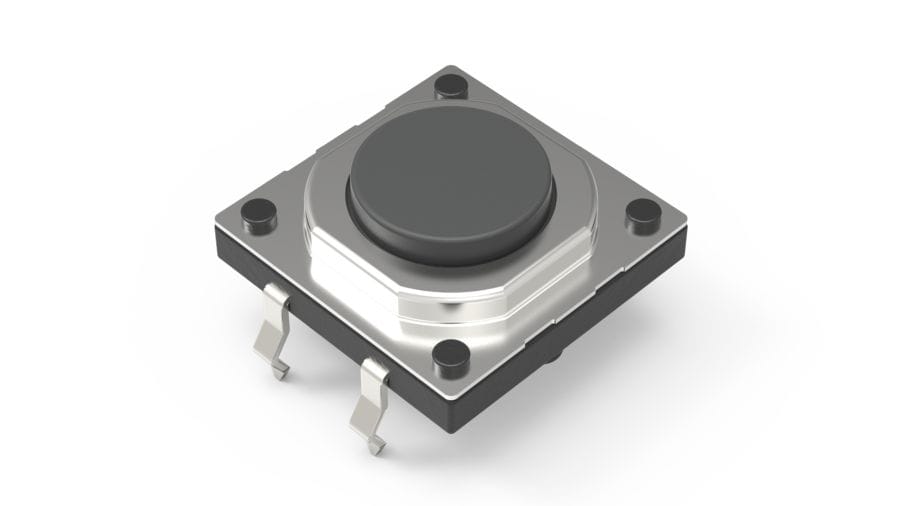

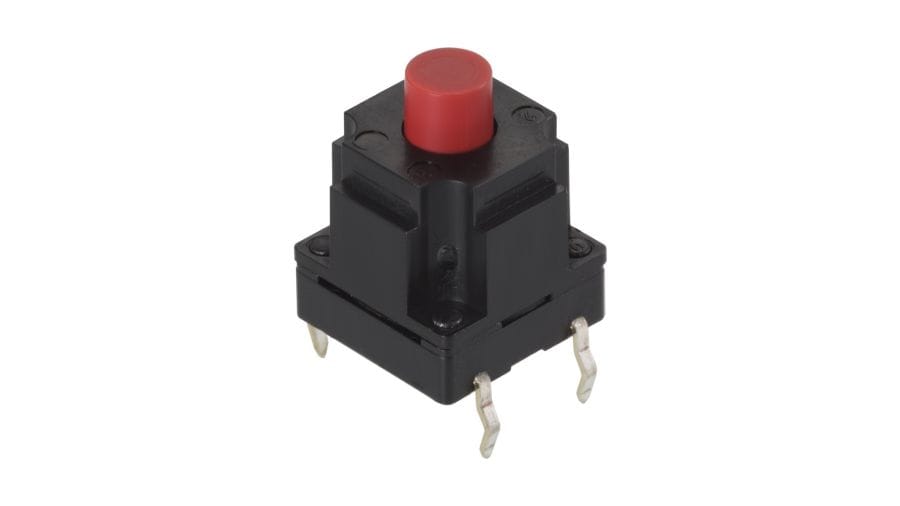

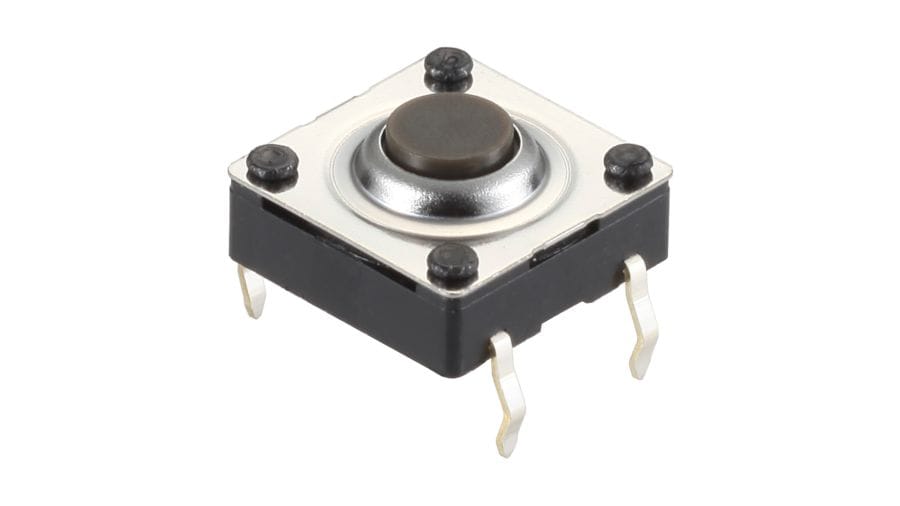

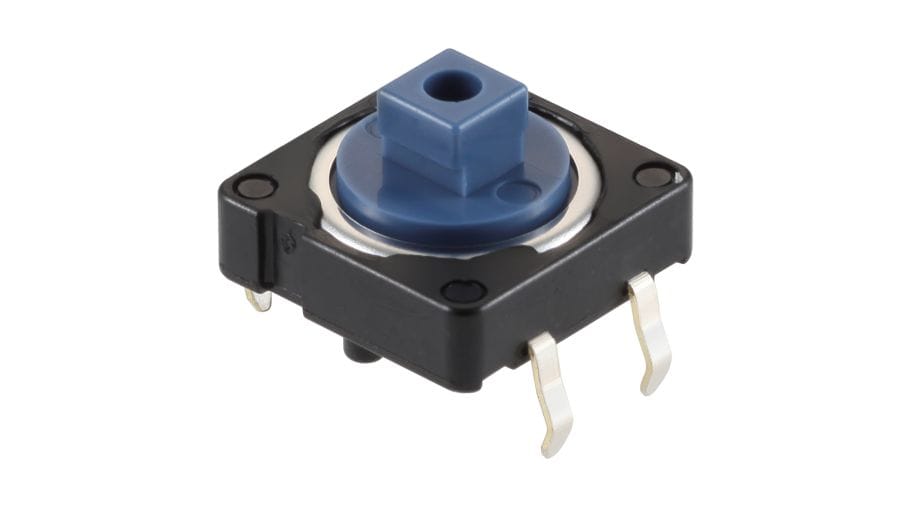

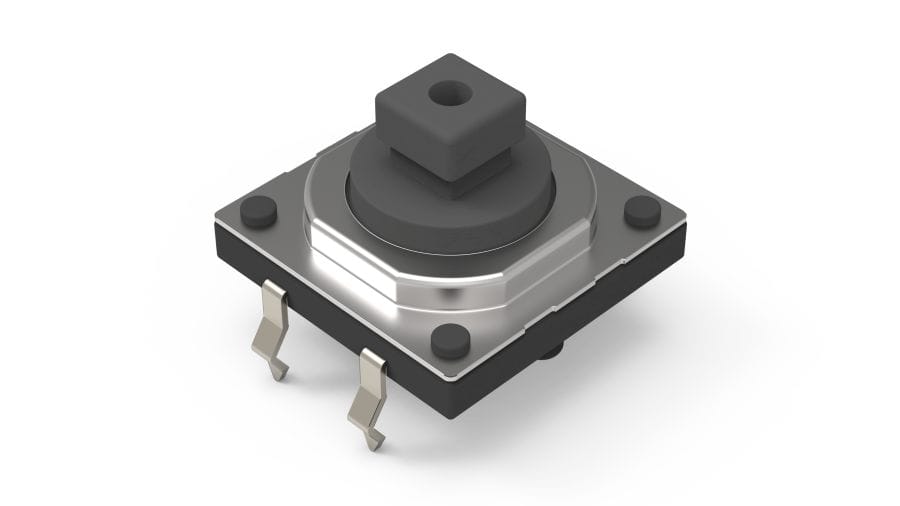

Travel(mm)	0.3	SKHCBJA010 12.0×12.0×7.3 SKHCBKA010 12.0×12.0×4.3	SKHCBEA010 12.0×12.0×7.3 SKHCBFA010 12.0×12.0×4.3 SKHCBLA010 12.0×12.0×7.3 SKHCBMA010 12.0×12.0×4.3 SKQBAPA010 10.0×10.0×13.0 Top push type Automotive Selection SKQBAQA010 10.0×10.0×23.2 Top push type Automotive Selection SKQBARA010 10.0×10.0×5.0 Top push type Automotive Selection SKQEAAA010 12.0×12.0×7.3 SKQEABA010 12.0×12.0×4.3	SKHCBGA010 12.0×12.0×7.3 SKHCBHA010 12.0×12.0×4.3 SKQBAJA010 10.0×10.0×13.0 Top push type Automotive Selection SKQBAMA010 10.0×10.0×23.2 Top push type Automotive Selection SKQBASA010 10.0×10.0×5.0 Top push type Automotive Selection SKQEACA010 12.0×12.0×7.3 SKQEADA010 12.0×12.0×4.3

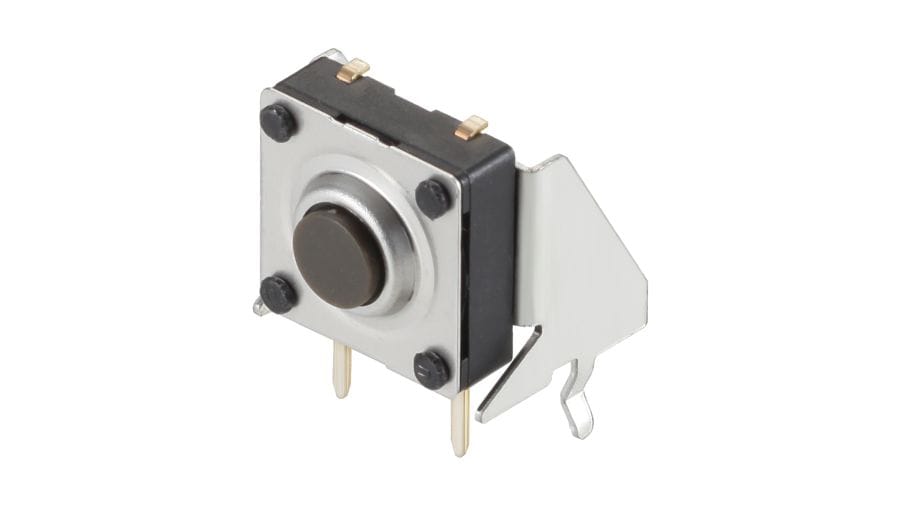

Travel(mm)	0.3		SKQBLBA010 11.1×11.9×11.0 Side push type Automotive Selection
Travel(mm)	0.11	SKTAACE010 2.6×1.6×0.53	SKTAAAE010 2.6×1.6×0.53 SKSVCAE010 2.8×1.9×0.5 SKUBAAE010 2.4×1.4×0.55

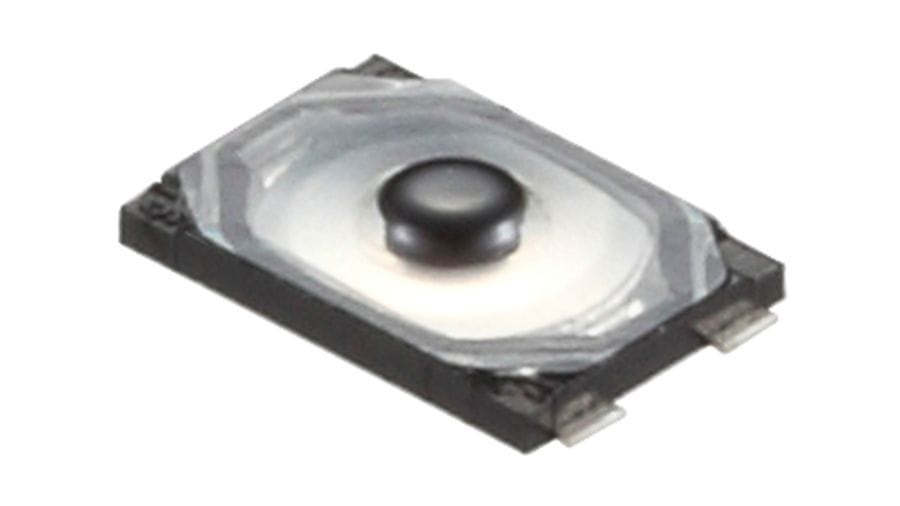

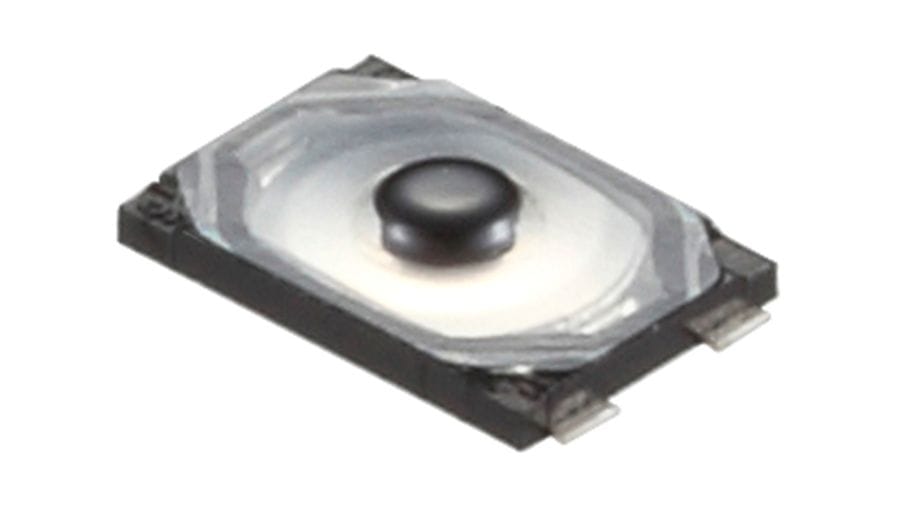

Travel(mm)	0.12	SKSVCBE010 2.8×1.9×0.55		SKSVCCE010 2.8×1.9×0.5

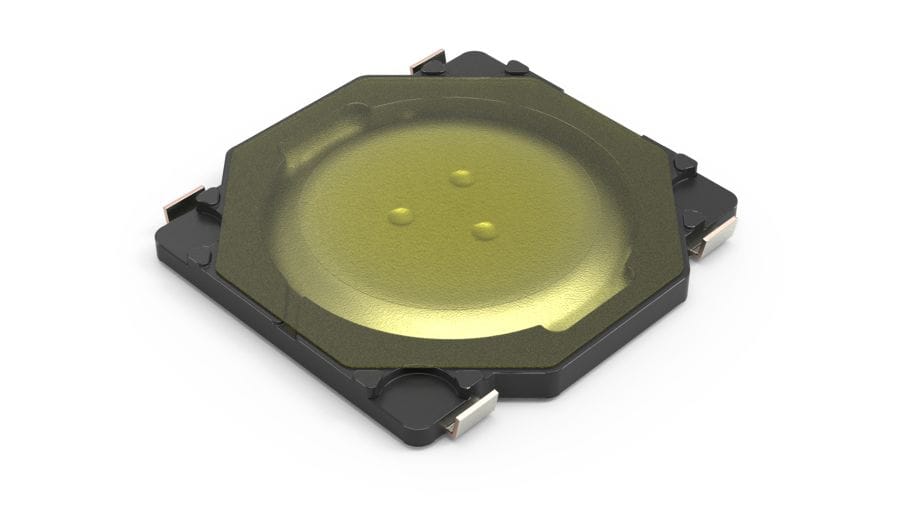

Travel(mm)	0.15		SKRWAEE030 3.7×3.7×0.35 SKRWAME030 3.7×3.7×0.35 SKRWANE030 3.7×3.7×0.35	SKRWADE030 3.7×3.7×0.35			SKTHAJE010 3.5×3.2×1.75 Automotive Selection

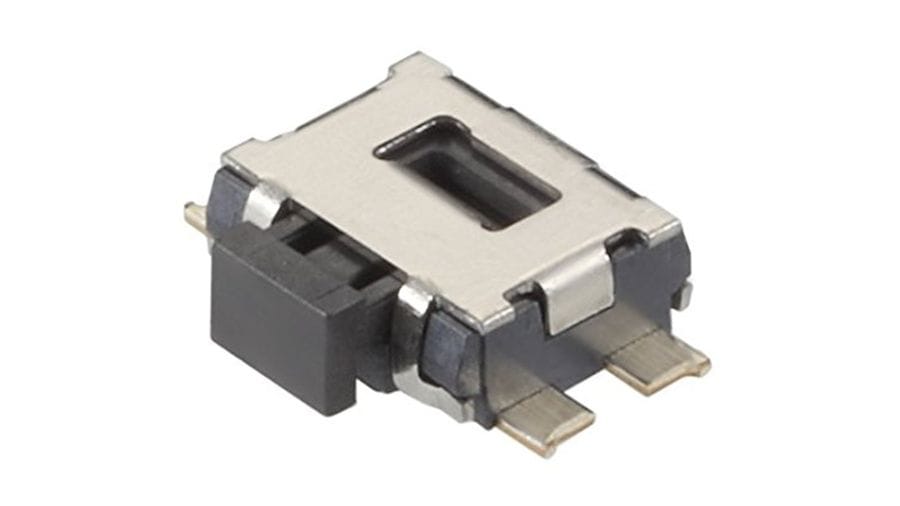

Travel(mm)	0.2		SKSCLCE010 3.5×3.55×1.25 Side push type SKSCLDE010 3.5×3.55×1.25 Side push type SKSCPCE010 3.5×3.55×1.25 With ground terminal type SKSCPDE010 3.5×3.55×1.25 With ground terminal type	SKSCLAE010 3.5×3.55×1.25 Side push type SKSCLBE010 3.5×3.55×1.25 Side push type SKSCPAE010 3.5×3.55×1.25 With ground terminal type SKSCPBE010 3.5×3.55×1.25 With ground terminal type

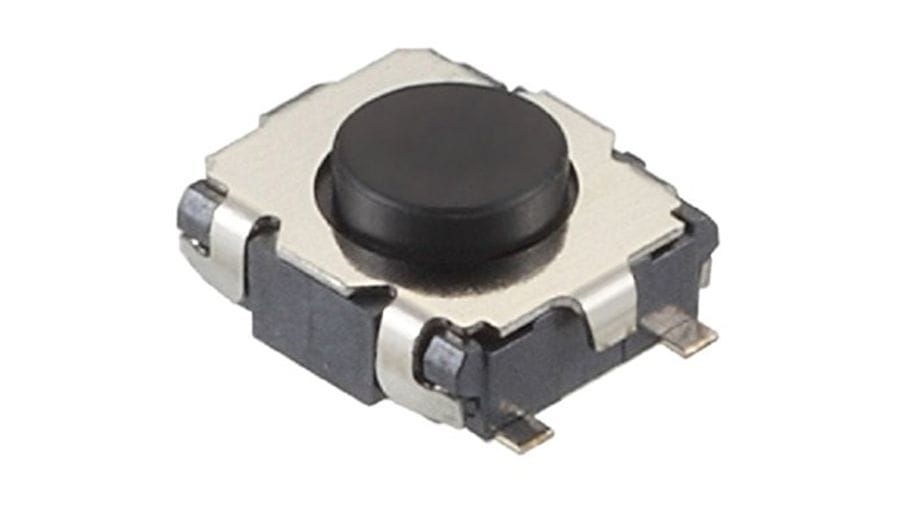

Travel(mm)	0.12		SKSGACE010 3.0×2.7×1.4 Top push type Automotive Selection SKSGPCE010 3.0×2.7×1.4 With ground terminal type Automotive Selection SKSGPJE010 3.0×2.7×1.4 With ground terminal type Automotive Selection SKTHACE010 3.5×3.2×1.8 Automotive Selection	SKSGAFE010 3.0×2.7×1.4 Top push type Automotive Selection SKSGPGE010 3.0×2.7×1.4 With ground terminal type Automotive Selection SKTHAHE010 3.5×3.2×1.8 Automotive Selection SKTHBAE010 3.5×3.2×2.5 Automotive Selection	SKSGAAE010 3.0×2.7×1.4 Top push type Automotive Selection SKSGPAE010 3.0×2.7×1.4 With ground terminal type Automotive Selection

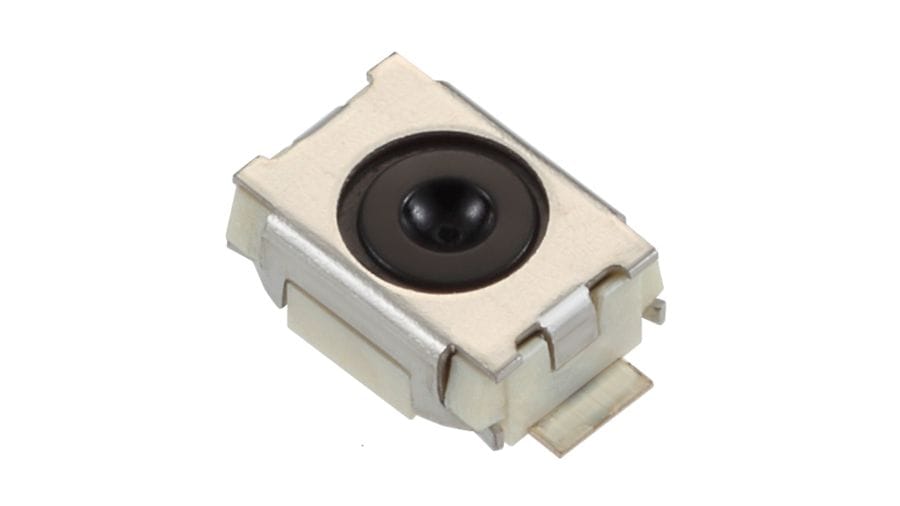

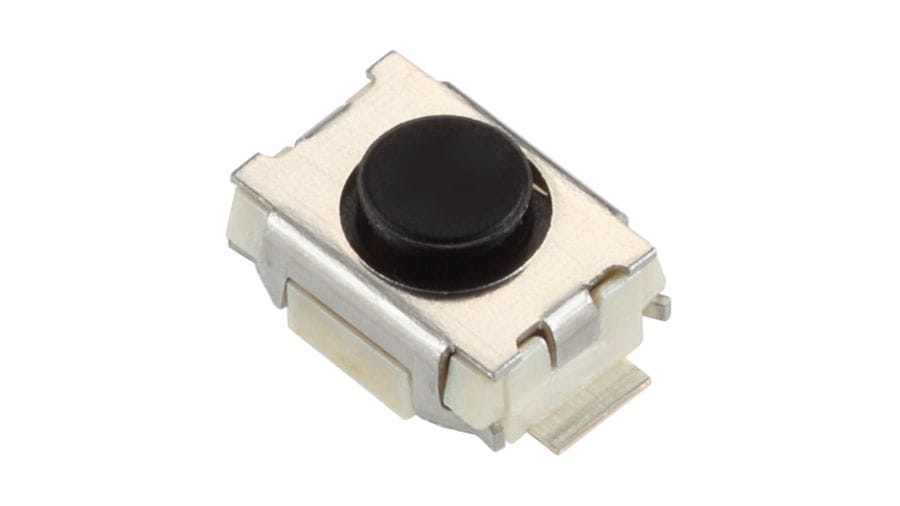

	0.13	SKRKAHE020 3.9×2.9×2.0	SKRKAEE020 3.9×2.9×2.0 SKRKAGE020 3.9×2.9×1.5 SKSWCBE010 3.0×2.0×0.6 SKSWCEE010 3.0×2.0×0.6	SKSWCFE010 3.0×2.0×0.6 SKSWDAE010 3.0×2.0×0.6	SKSWCGE010 3.0×2.0×0.6
	0.15		SKTDLDE010 3.9×2.9×1.55 SKTDLGE010 3.9×2.9×1.55			SKTHAEE010 3.5×3.2×1.75 Automotive Selection

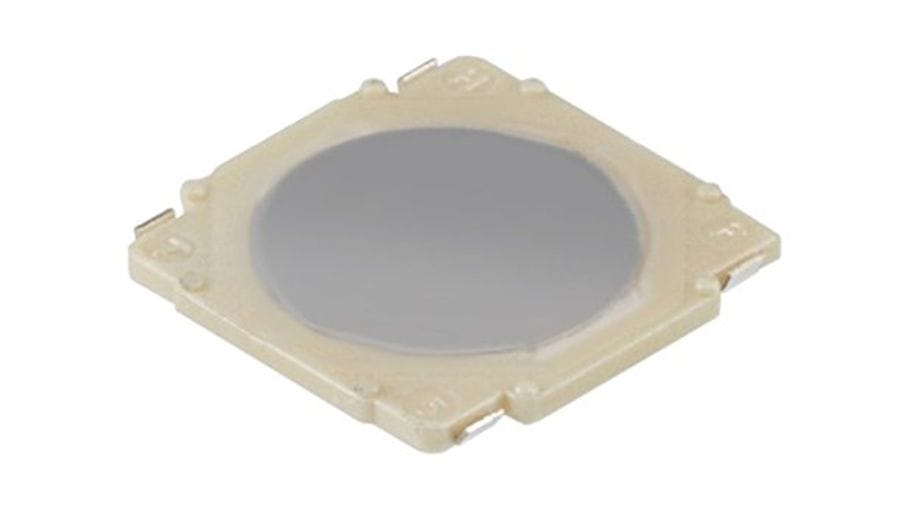

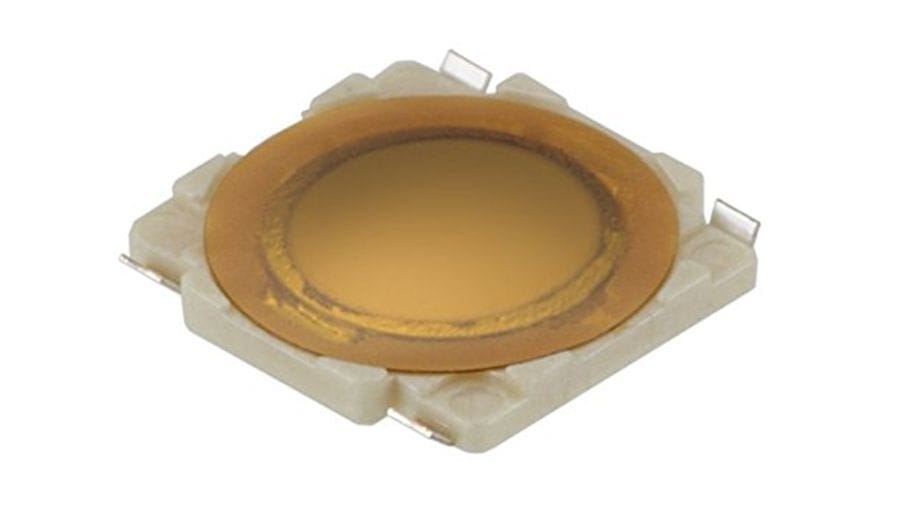

Travel(mm)	0.15		SKRBAGE010 4.8×4.8×0.55 Automotive Selection SKRMAAE010 4.5×4.5×0.4
Travel(mm)	0.2		SKRBAAE010 4.8×4.8×0.55 Automotive Selection SKRBACE010 4.8×4.8×0.55 Automotive Selection	SKRMABE010 4.5×4.5×0.4	SKRBAKE010 4.8×4.8×0.55 Automotive Selection

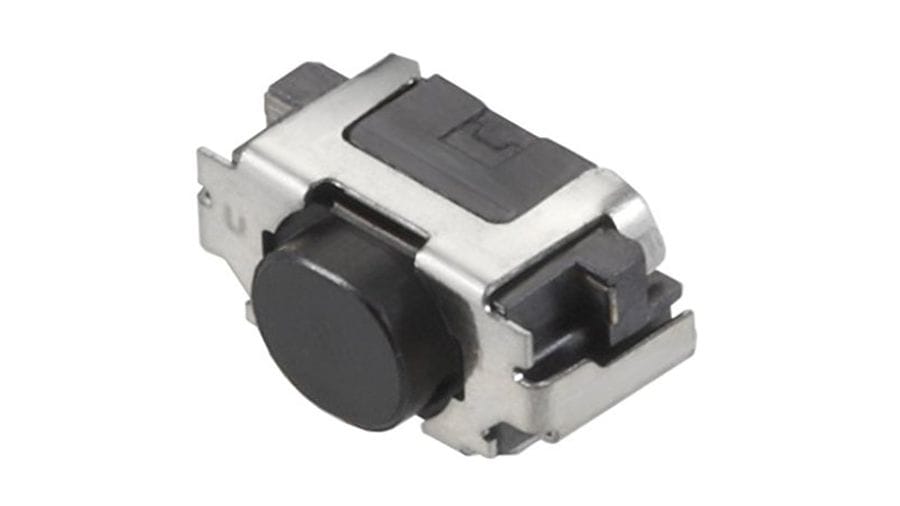

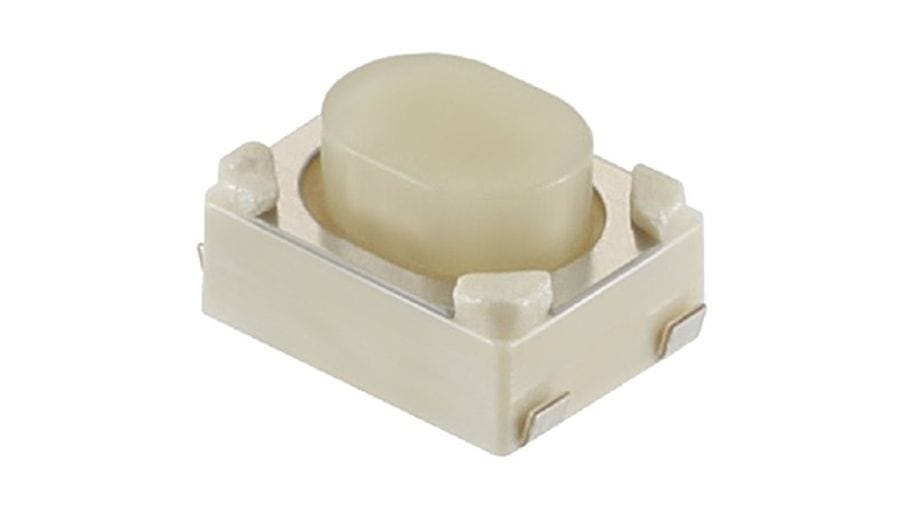

Travel(mm)	0.15	SKRPAKE010 4.2×3.2×2.5 Standard type	SKSLLAE010 4.5×2.6×2.2	SKSLLBE010 4.5×2.6×2.2	SKSLLCE010 4.5×2.6×2.2 Automotive Selection

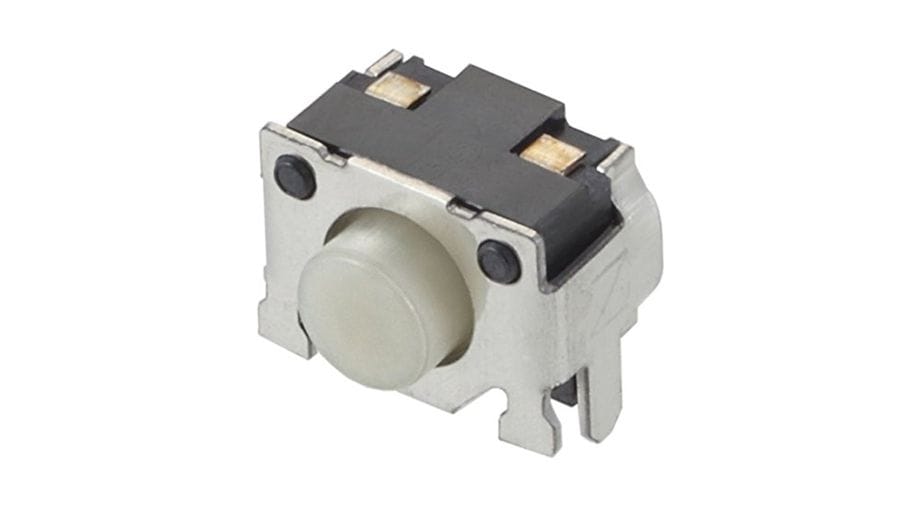

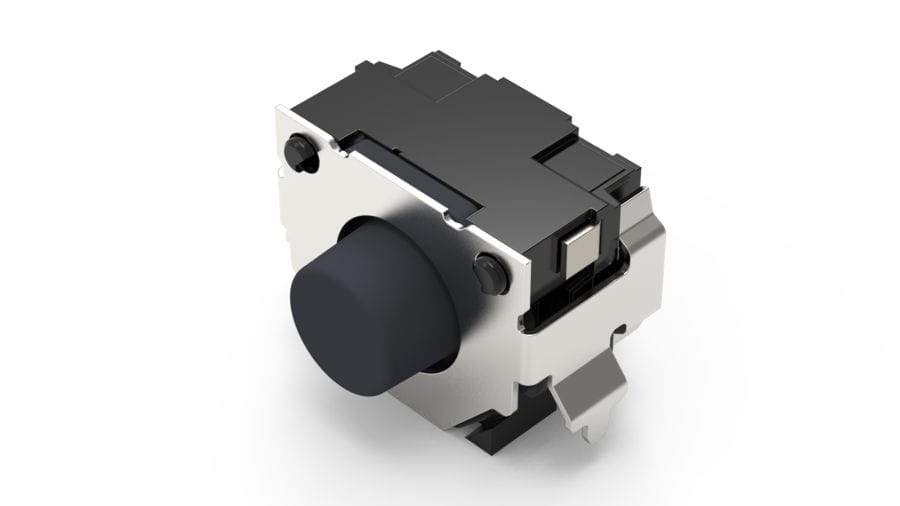

Travel(mm)	0.2		SKRPABE010 4.2 x 3.2×2.5 Standard type Automotive Selection SKRPANE010 4.2 x 3.2×2.5 Long life type Automotive Selection SKRTLAE010 4.5×3.4×3.3 SKRTLBE010 4.5×3.4×3.3 SKSJLEE010 4.8×3.25×3.3	SKRPACE010 4.2 x 3.2×2.5 Standard type Automotive Selection SKRPAME010 4.2×3.2×2.5 Standard type Automotive Selection SKRPASE010 4.2 x 3.2×2.5 Long life type Automotive Selection	SKRPADE010 4.2 x 3.2×2.5 Standard type Automotive Selection	SKRPARE010 4.2 x 3.2×2.5 Standard type Automotive Selection
Travel(mm)	0.23			SKTKABE010 5.9×4.0×0.78

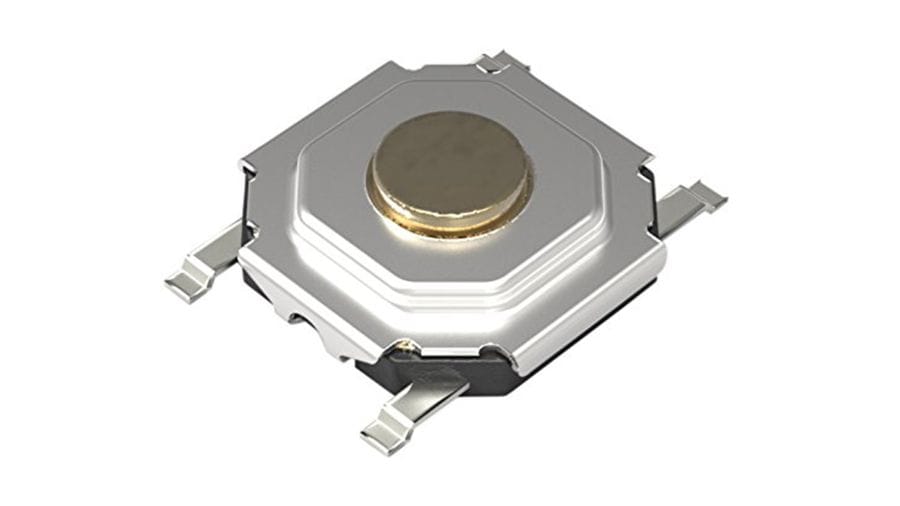

	0.25	SKQGAFE010 5.2 x 5.2×1.5 Automotive Selection	SKQGABE010 5.2 x 5.2×1.5 Automotive Selection	SKQGADE010 5.2 x 5.2×1.5 Automotive Selection	SKQGAKE020 5.2 x 5.2×1.5 Automotive Selection

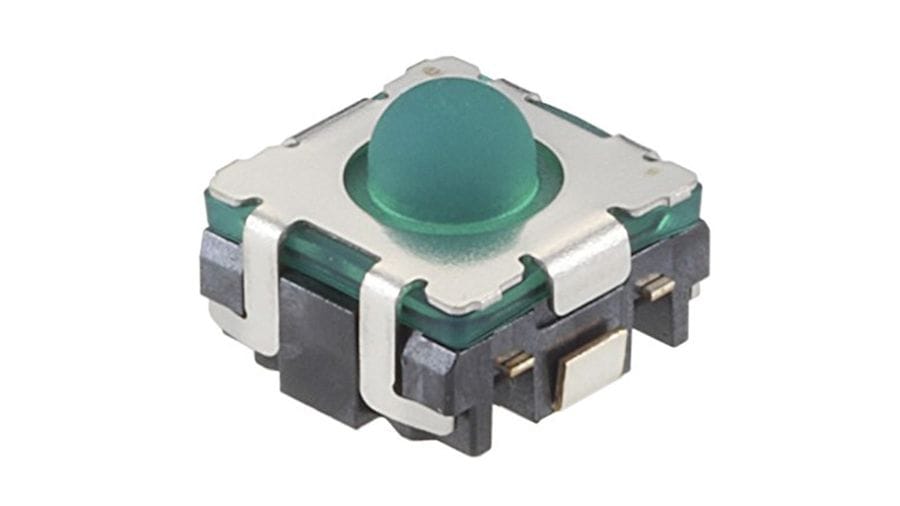

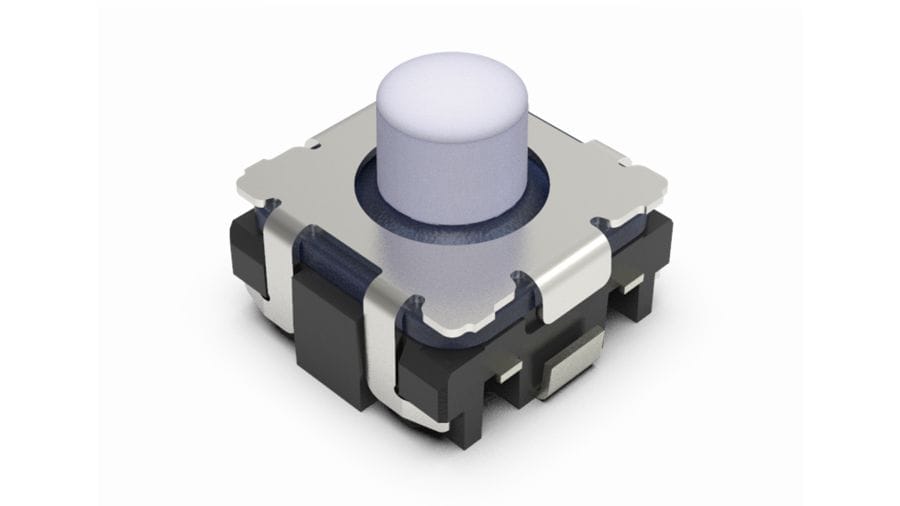

	0.7			SKTQADE010 5.3×5.4×4.25 Automotive Selection	SKSUAAE010 5.3×5.4×3.85 Automotive Selection	SKTQAGE010 5.3×5.4×4.25 Automotive Selection
	0.71			SKTQABE010 5.3×5.4×4.25 Automotive Selection	SKTQACE010 5.3×5.4×4.25 Automotive Selection	SKTQAAE010 5.3×5.4×4.25 Automotive Selection
	0.73			SKTQAFE010 5.3×5.4×4.25 Automotive Selection
	0.74					SKTQAEE010 5.3×5.4×4.25 Automotive Selection
	0.8		SKSUBDE010 5.3×5.4×4.34
	0.9			SKSUBCE010 5.3×5.4×4.34 Automotive Selection
	1.04					SKSUBBE010 5.3×5.4×4.34 Automotive Selection

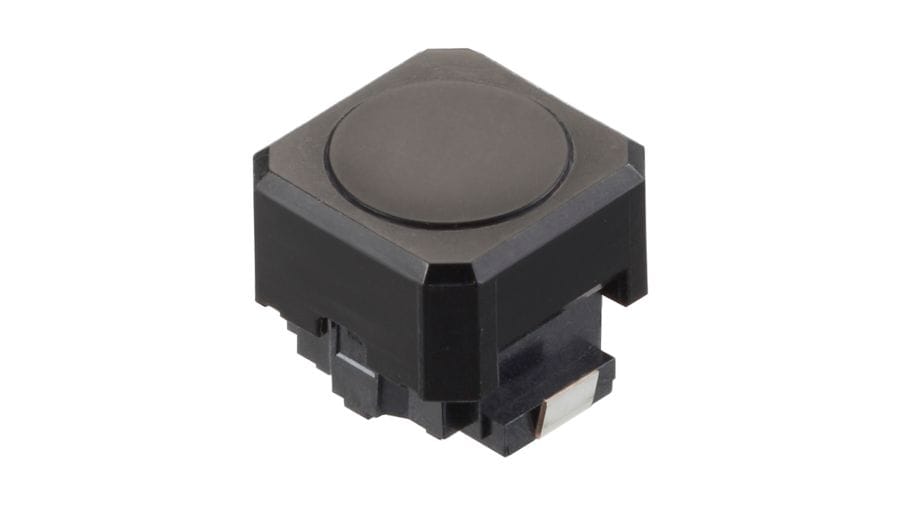

	1.05			SKPSACE010 5.9×6.0×5.0 Automotive Selection SKPSAEE010 5.9×6.0×5.0 Automotive Selection	SKPSAAE010 5.9×6.0×5.0 Automotive Selection SKPSADE010 5.9×6.0×5.0 Automotive Selection

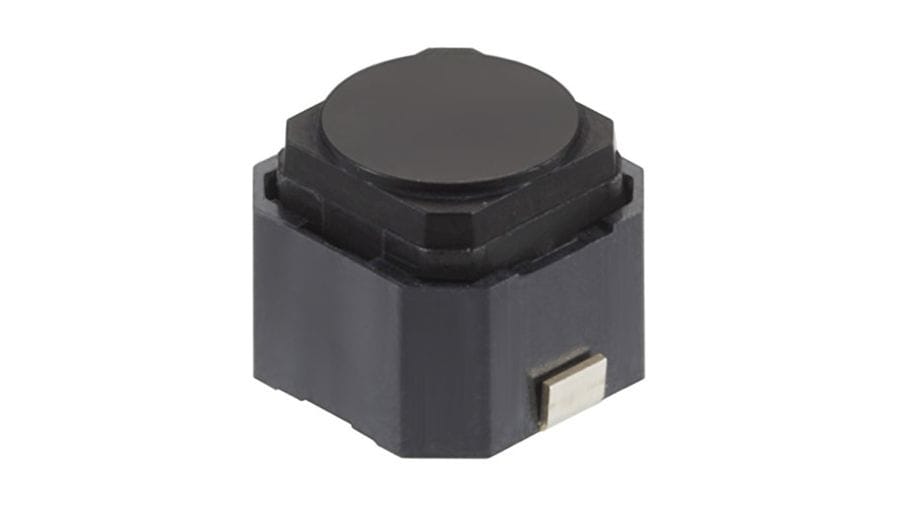

	1.3		SKPMAME010 5.9×6.0×5.0 Automotive Selection SKPMANE010 5.9×6.0×5.0 Automotive Selection	SKPMAPE010 5.9×6.0×5.0 Automotive Selection SKPMBHE010 5.9×6.0×5.0 Automotive Selection
Travel(mm)	0.23		SKSNLPE010 7.5×4.07×3.5

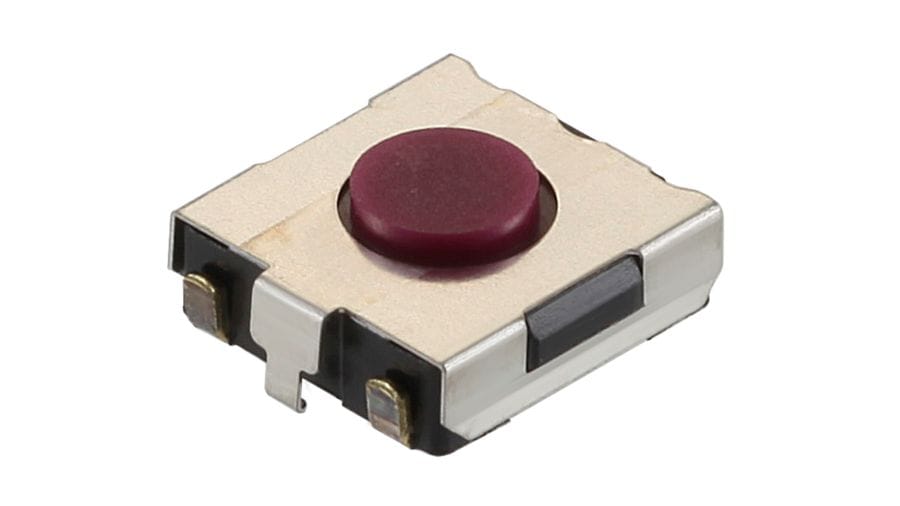

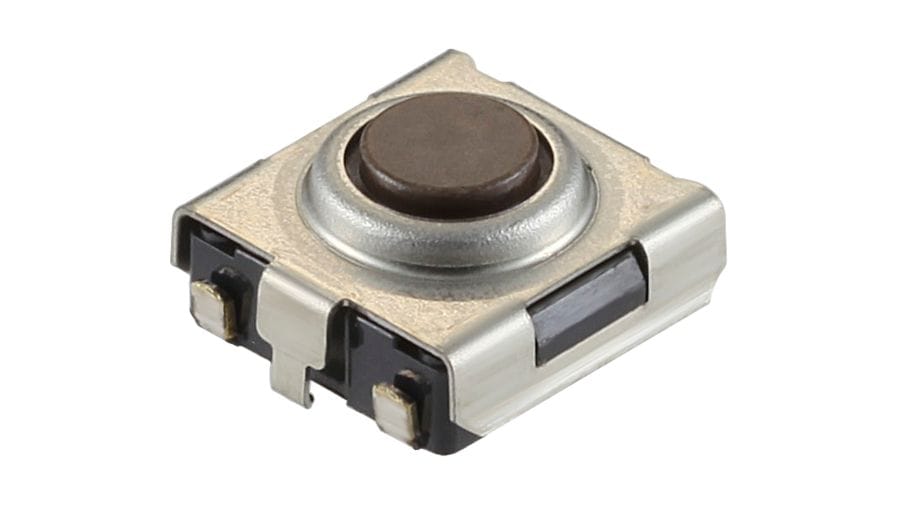

	0.25	SKHUAKE010 6.2×6.3×2.5 Top push type Automotive Selection SKHUPKE010 6.2×6.3×2.5 With ground terminal type Automotive Selection SKHMQKK010 6.2×6.5×3.1	SKHUALE010 6.2×6.3×2.5 Top push type Automotive Selection SKHUBHE010 6.2×6.3×3.1 Dust-proof type Automotive Selection SKHUPLE010 6.2×6.3×2.5 With ground terminal type Automotive Selection SKHUQHE010 6.2×6.3×3.1 Dust-proof and with ground terminal type Automotive Selection SKRABGE010 6.2×6.2×3.5 SKHMQLK010 6.2×6.5×3.1	SKHUAME010 6.2×6.3×2.5 Top push type Automotive Selection SKHUPME010 6.2×6.3×2.5 With ground terminal type Automotive Selection SKHUQGE010 6.2×6.3×3.1 Dust-proof and with ground terminal type Automotive Selection SKHMQMK010 6.2×6.5×3.1
	0.3	SKRAAWE010 6.2×6.2×3.5		SKRAAKE010 6.2×6.2×3.5 Automotive Selection
	0.35				SKRAALE010 6.2×6.2×3.5 Automotive Selection

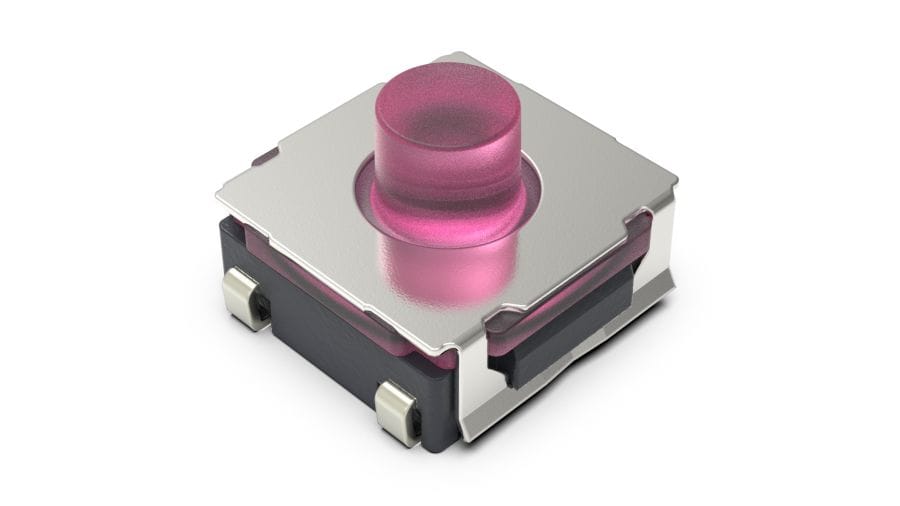

	0.36				SKTTABE010 6.2×6.2×4.4 Automotive Selection
	0.4		SKRABCE010 6.2×6.2×3.5 SKRABNE010 6.2×6.2×3.4
	0.5		SKRAAME010 6.2×6.2×5.2 Automotive Selection
	0.55				SKRAAQE010 6.2×6.2×5.2 Automotive Selection
	0.72				SKTRAEE010 6.1×6.1×4.1 Automotive Selection
	0.75			SKTRAGE010 6.1×6.1×4.1 Automotive Selection
	0.78				SKTRAFE010 6.1×6.1×4.1 Automotive Selection
Travel(mm)	0.2			SKSNLAE010 6.2×3.0×3.5		SKSNLKE010 6.2×3.0×3.5 Automotive Selection SKSNLHE010 6.2×3.0×3.5 Automotive Selection

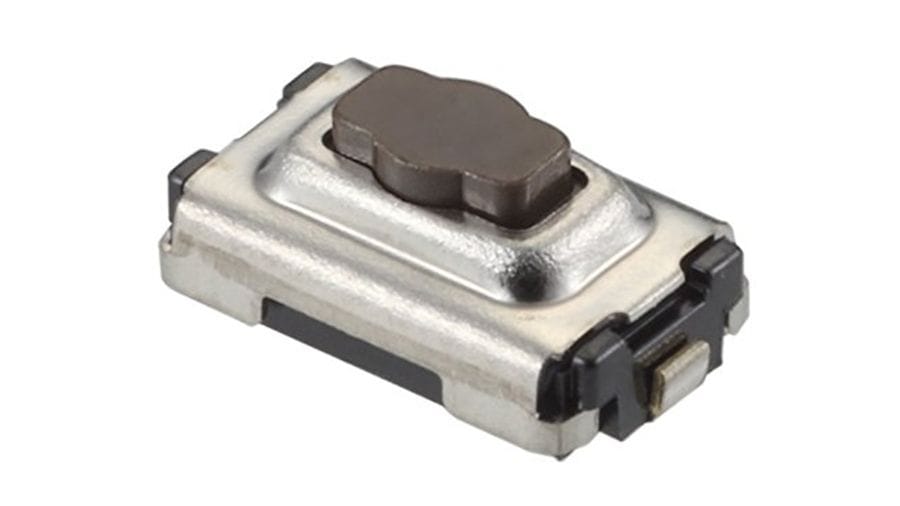

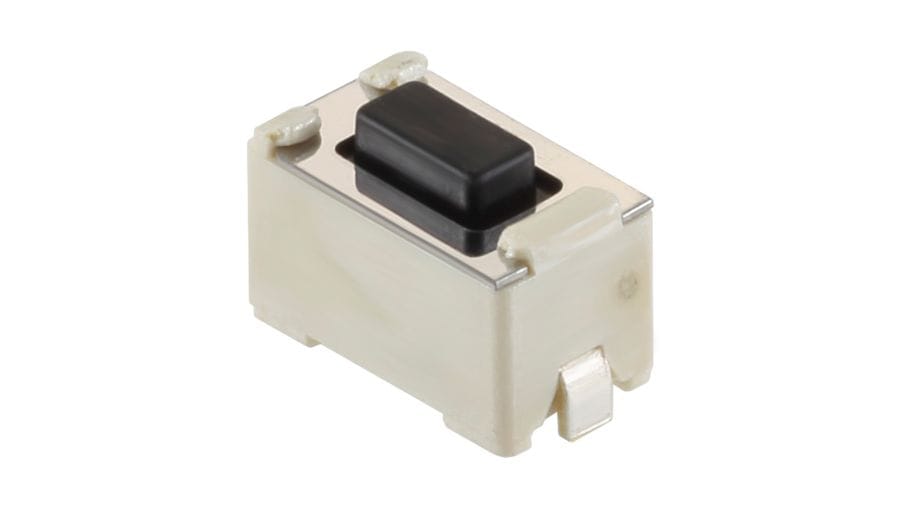

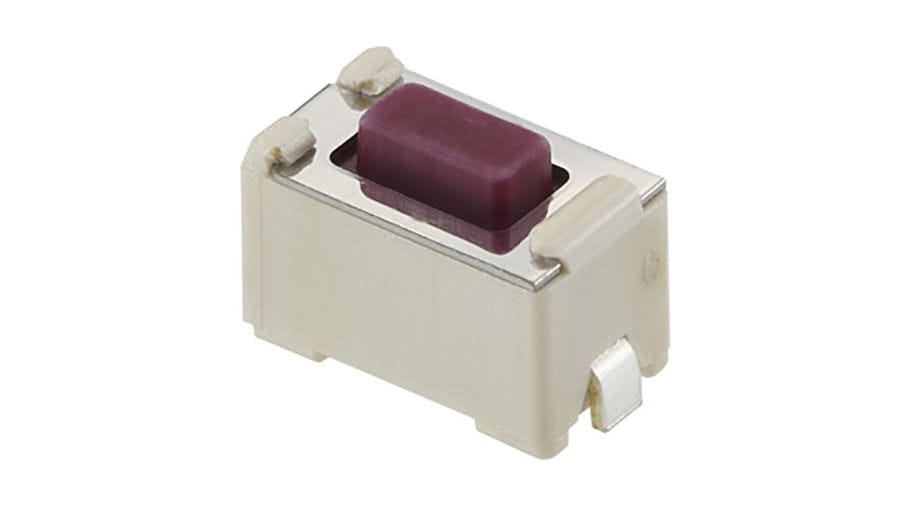

Travel(mm)	0.25	SKQMATE010 6.0×3.5×5.0 Automotive Selection SKQMBAE010 6.0×3.5×4.3 Automotive Selection SKQYACE010 6.1×3.7×2.5 Top push type Automotive Selection SKQYPCE010 6.1×3.7×2.5 With ground terminal type Automotive Selection	SKQMASE010 6.0×3.5×4.3 Automotive Selection SKQMBBE010 6.0×3.5×5.0 Automotive Selection SKQYAAE010 6.1×3.7×2.5 Top push type Automotive Selection SKQYPAE010 6.1×3.7×2.5 With ground terminal type Automotive Selection	SKQMAQE010 6.0×3.5×4.3 Automotive Selection SKQMARE010 6.0×3.5×5.0 Automotive Selection SKQYABE010 6.1×3.7×2.5 Top push type Automotive Selection SKQYPBE010 6.1×3.7×2.5 With ground terminal type Automotive Selection	SKQYAFE010 6.1×3.7×2.5 Top push type Automotive Selection SKQYPDE010 6.1×3.7×2.5 With ground terminal type Automotive Selection

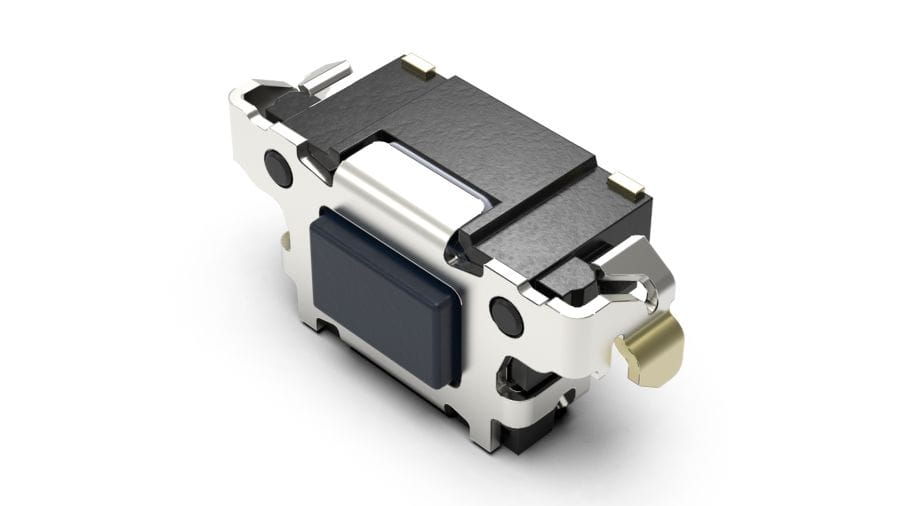

Travel(mm)	0.15		SKSNLME010 7.5×3.0×3.5
	0.22		SKUAAAE010 7.0×7.5×0.67

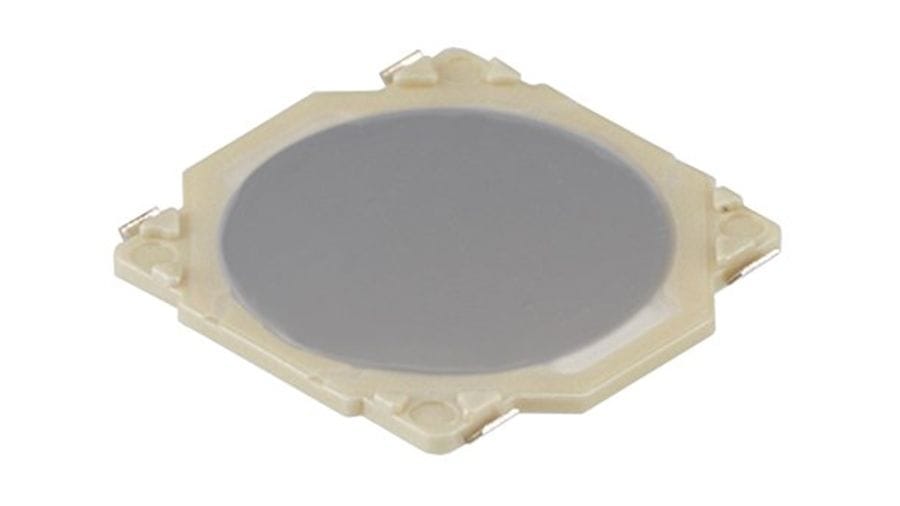

	0.25	SKRRAAE010 7.5×7.0×0.6	SKRRABE010 7.5×7.0×0.6 SKRRACE010 7.5×7.0×0.6

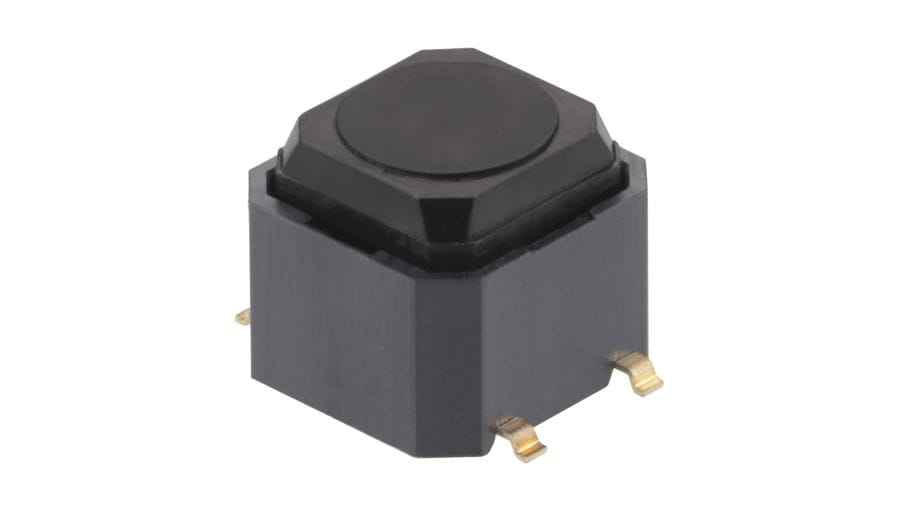

	1					SKPRAAE010 7.5×7.8×6.5 Automotive Selection

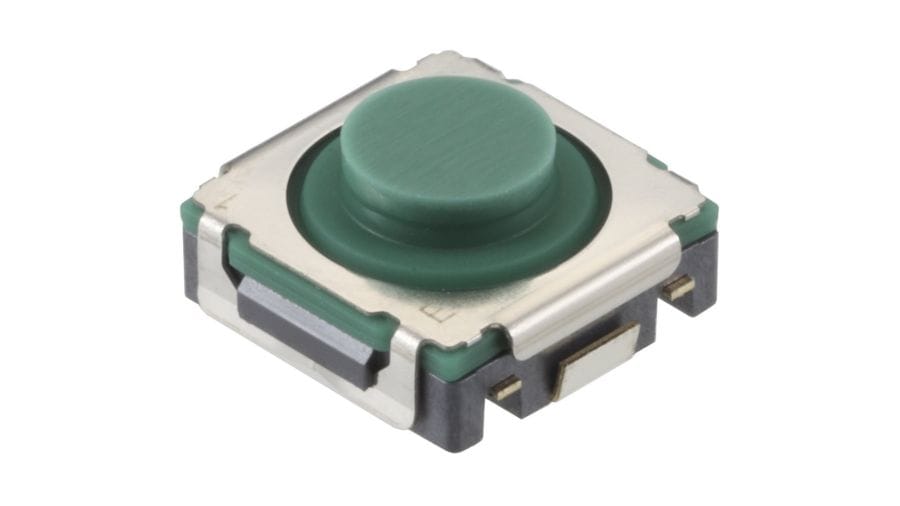

Travel(mm)	0.9				SKSTAAE010 8.5×8.5×3.95 Automotive Selection	SKSTAHE010 8.5×8.5×3.95 Automotive Selection	SKSTACE010 8.5×8.5×3.95 Automotive Selection SKSTAJE010 8.5×8.5×3.95 Automotive Selection SKSTADE010 8.5×8.5×3.95 Automotive Selection
