Capacitive Sensor IC Evaluation and Development Kits

Alps Alpine’s Capacitive Sensor ICs support a broad range of applications, including gesture control, proximity detection, and liquid level sensing. Check out our lineup of evaluation and development kits supporting development for certain applications.

*The appearance of evaluation kits is subject to change, though this will not affect their functionality.

Evaluation/Development Kits – Applications and Types

We have kits supporting the following applications. Select a suitable kit for the intended application.

Kit Types

Here we introduce the following two types of kit.

IC evaluation kits
Kits for evaluating basic IC performance, making it easy to see how ICs work
Firmware development kits
Kits for developing firmware for microcontrollers with built-in capacitive ICs. They include IC evaluation features.
Gesture Control and Proximity Detection

IC Evaluation Kits

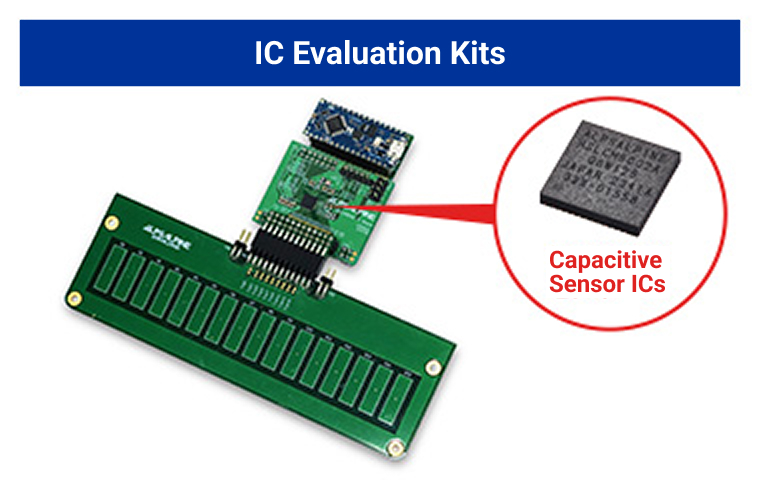

These kits are designed especially for IC evaluation. Each kit contains three items: a sensor board, an interface connector, and an IC board.

A
Sensor Boards (3 options)
16ch Sensor Board
SENSOR_E002A
8ch Sensor Board
SENSOR_E003A
2ch Sensor Board
SENSOR_E001A
B
Interface Connector
Interface Connector
SDB003A-N
C
IC Board
IC Board
ICB001C
Recommended Standard Set (STDKIT101A)
STDKIT101A
A
Sensor Board
SENSOR_E002A
B
Interface Connector
SDB003A-N
C
IC Board
ICB001C

For inquiries about the products above:

Inquiries about Products

Tool Manual, Instructions and App Downloads

Special tools and a dedicated app are needed to set up evaluation and development kits.
Download from the following link. (Registration required)

Download the tool manuals, instructions and app here.

Liquid Level Sensing

IC Evaluation Kits

Evaluation kits for liquid level sensing. Each kit contains two items: a sensor board and an interface connector.

E
Sensor Boards (2 options)
WLS Sensor Board Short Type
WLS001A
WLS Sensor Board Long Type
WLS002A
F
Interface Connector
Interface Connector
SDB003A-N

Tool Manual, Instructions and App Downloads

Special tools and a dedicated app are needed to set up evaluation and development kits.
Download from the following link. (Registration required)

Download the tool manuals, instructions and app here.

Recommended Short Type Standard Set
WLS EV Board KIT Short Type
WLSKIT101A
E
Sensor Board
WLS001A
F
Interface Connector
SDB003A-N

For inquiries about the products above:

Inquiries about Products
Recommended Long Type Standard Set
WLS EV Board KIT Long Type
WLSKIT102A
E
Sensor Board
WLS002A
F
Interface Connector
SDB003A-N

For inquiries about the products above:

Inquiries about Products
Gesture Control and Proximity Detection

Firmware Development Kits

In addition to IC evaluation, these development kits can be used to develop firmware for microcontrollers with built-in capacitive ICs. Each kit contains two items: a sensor board and a development board.

A
Sensor Boards (3 options)
16ch Sensor Board
SENSOR_E002A
8ch Sensor Board
SENSOR_E003A
2ch Sensor Board
SENSOR_E001A
D
Development Board
Development Board
SDB002B
Recommended Standard Set
DEVKIT101A
A
Sensor Board
SENSOR_E002A
D
Development Board
SDB002B

For inquiries about the products above:

Inquiries about Products
